Detail Daerah Irigasi
Detail Daerah Irigasi di Kabupaten SemarangData Daerah Irigasi
| Nama Daerah Irigasi | DI Sigedeg | ||
| Kecamatan | Kec. Tuntang | ||
| Desa | Ds. Watu Agung | ||
| Jenis Klasifikasi Bangunan | - | ||
| Luas Potensial | 52 Ha | ||
| Luas Fungsional | 55.6366026896 Ha | ||
| Luas Baku | 52 Ha | ||
| Indeks Kondisi Sistem Irigasi (IKSI) | 51.71 % | ||
| Panjang Sal. Primer | 3,210.57 m | Kondisi | |
| Panjang Sal. Sekunder | 559.52 m | Kondisi | |
| Panjang Sal. Tersier | 0.00 m | Kondisi | |
| Panjang Sal. Total | 3.60 km | Kondisi Sal. Baik | 0.00 m |
| Kondisi Sal. Rusak Ringan | 1.20 m | ||
| Kondisi Sal. Rusak Sedang | 2.40 m | ||
| Kondisi Sal. Rusak Berat | 0.00 m | ||
| Kelompok P3A | Ketua P3A | ||
| Kelompok GP3A | Ketua GP3A | ||
| Kelompok IP3A | Ketua IP3A | ||
| Skema Jaringan |
data_daerah_irigasi_skema_jaringan_1756176146_Skema Sigedeg jaringan.pdf
|
||
| Skema Bangunan |
data_daerah_irigasi_skema_bangunan_1756176150_Skema Sigedeg bangunan.pdf
|
||
Saluran
| Nama DI | Kecamatan | Desa | Nama Saluran | Panjang Saluran (m) |
|---|---|---|---|---|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Saluran Primer Sigedeg II | 122.64 |
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Saluran Primer Sigedeg I | 1,684.90 |
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Saluran Sekunder SigedegIII | 559.52 |
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Saluran Primer Sigedeg IV | 1,403.02 |
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Saluran Tersier Sigedeg | 0.00 |
Sawah
| Nama DI | Kecamatan | Desa | Luas Baku (Ha) | Luas Potensial (Ha) | Luas Fungsional (Ha) | Keterangan |
|---|---|---|---|---|---|---|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | 52 | 52 | 55.6366026896 | DI Sesuai Permen PUPR No. 14/2015 |
Bangunan

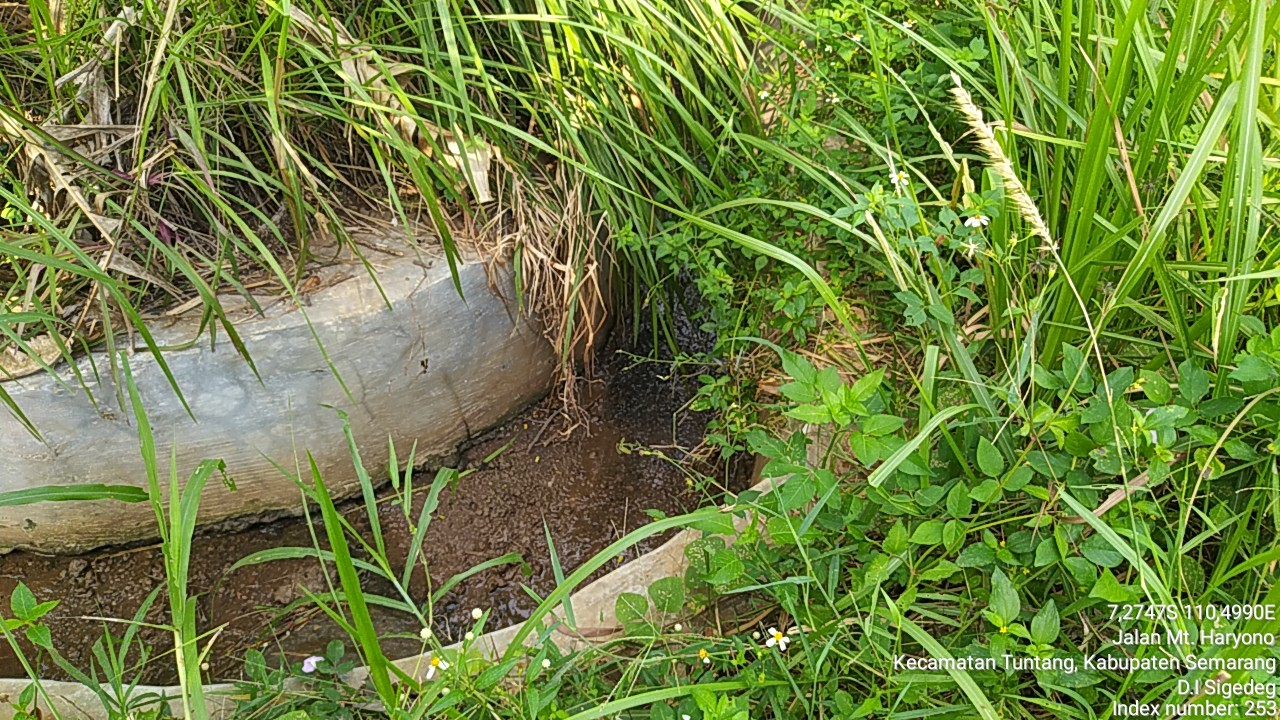

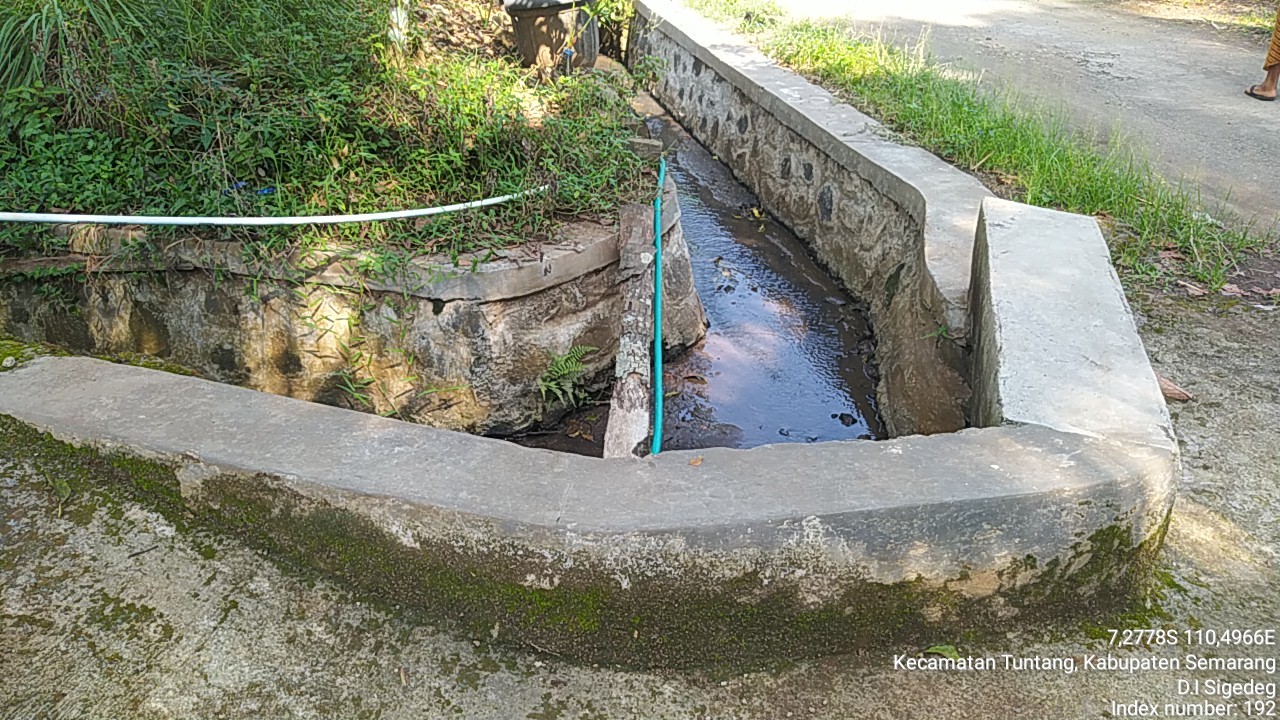

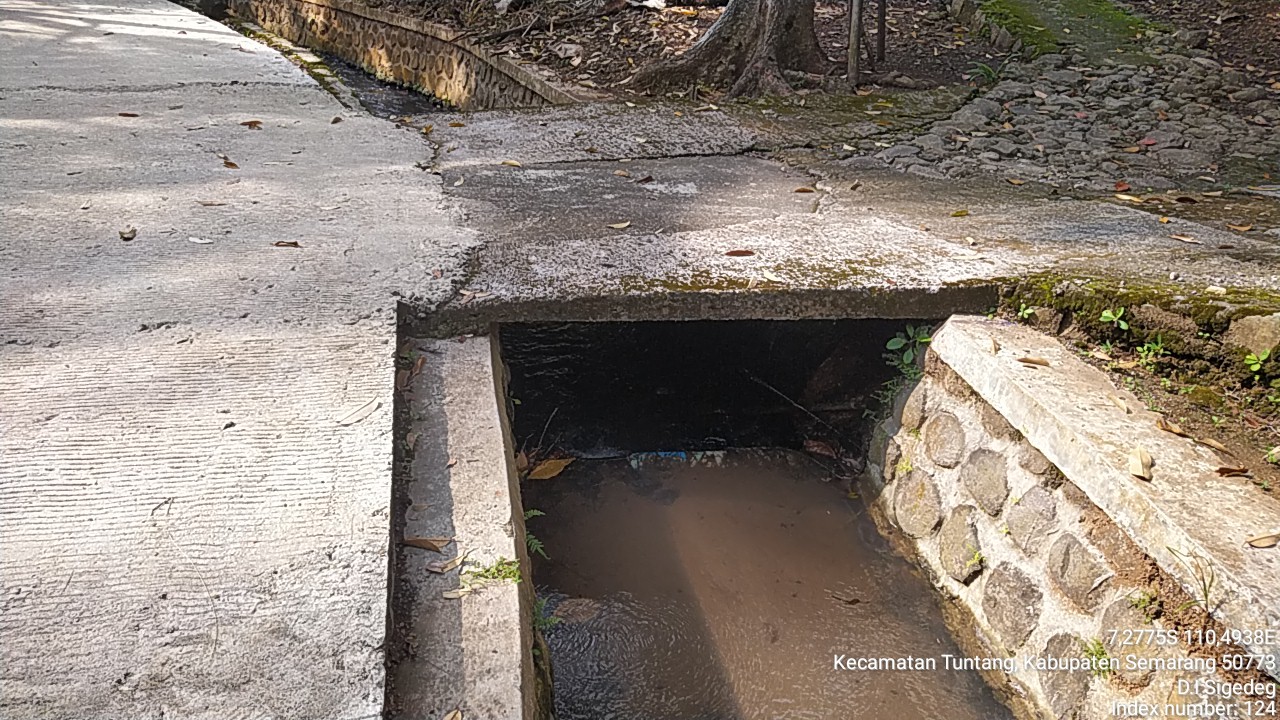

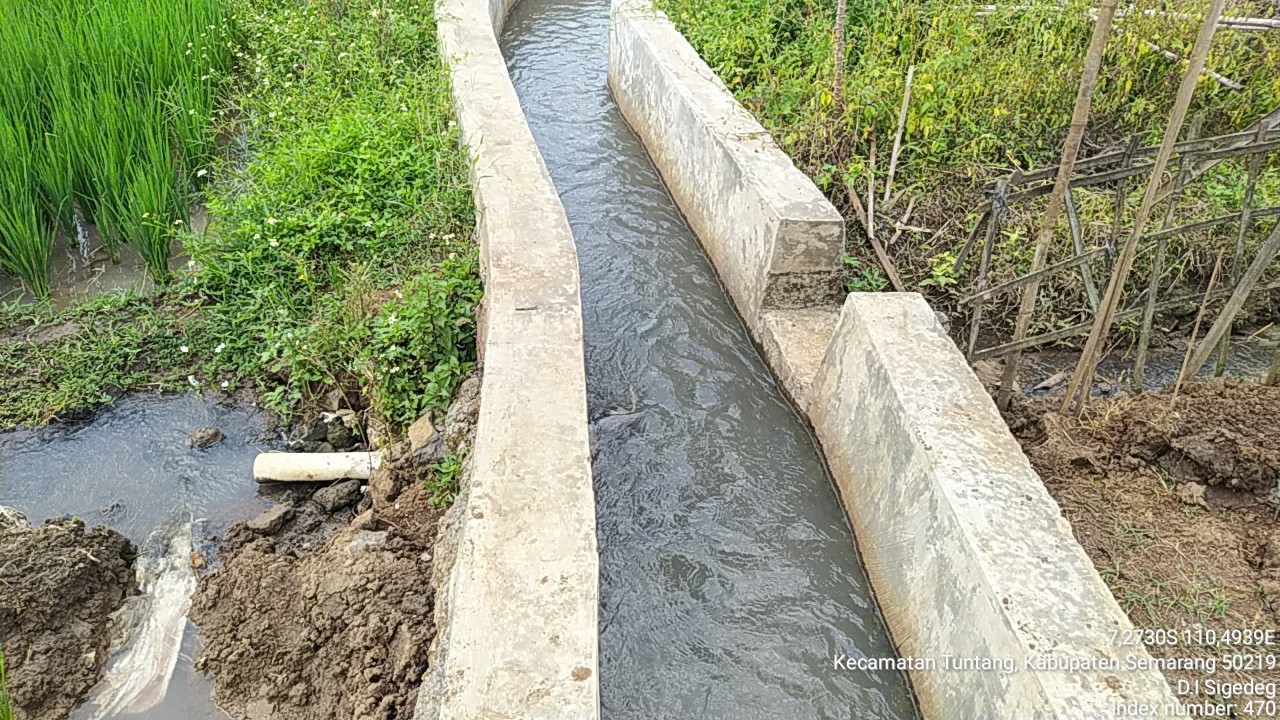

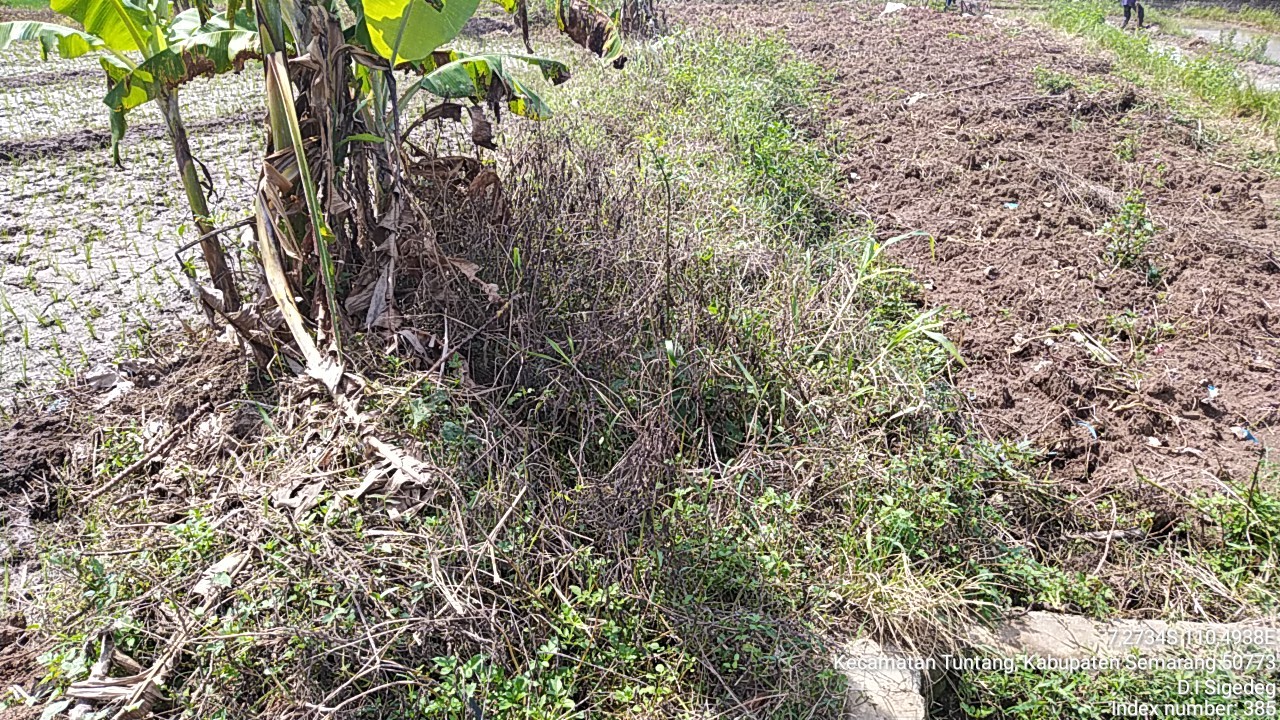

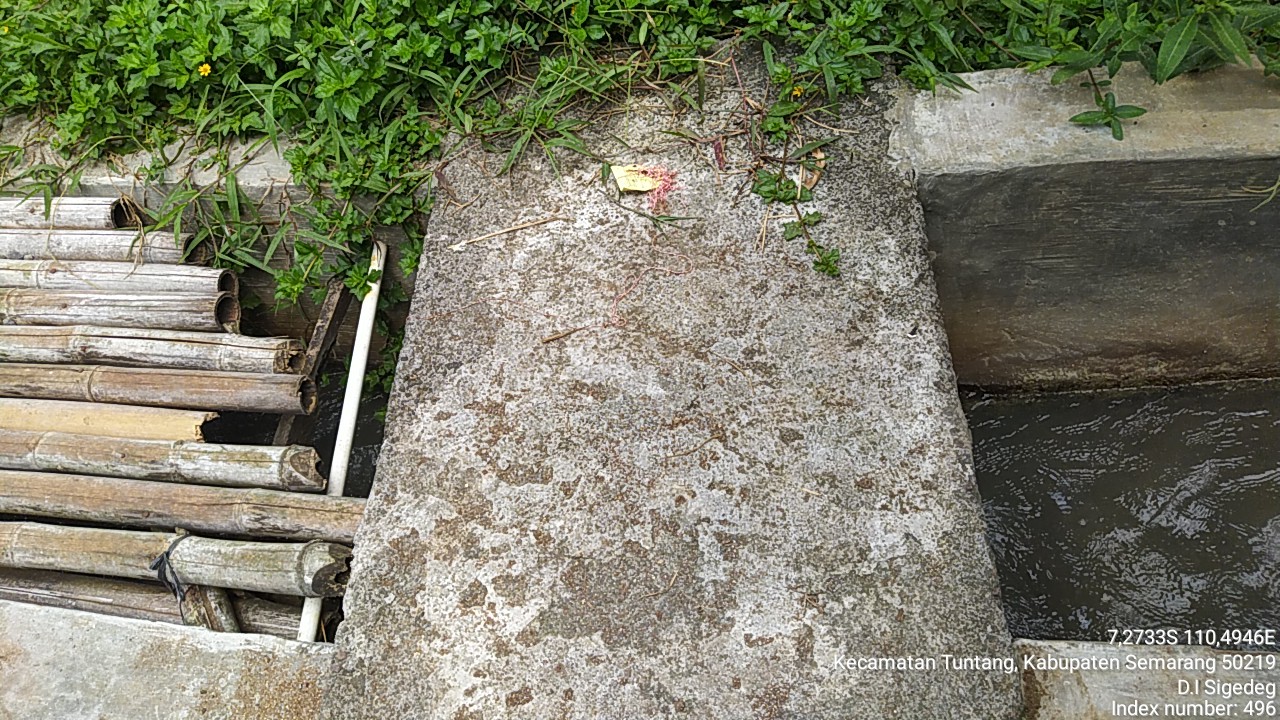

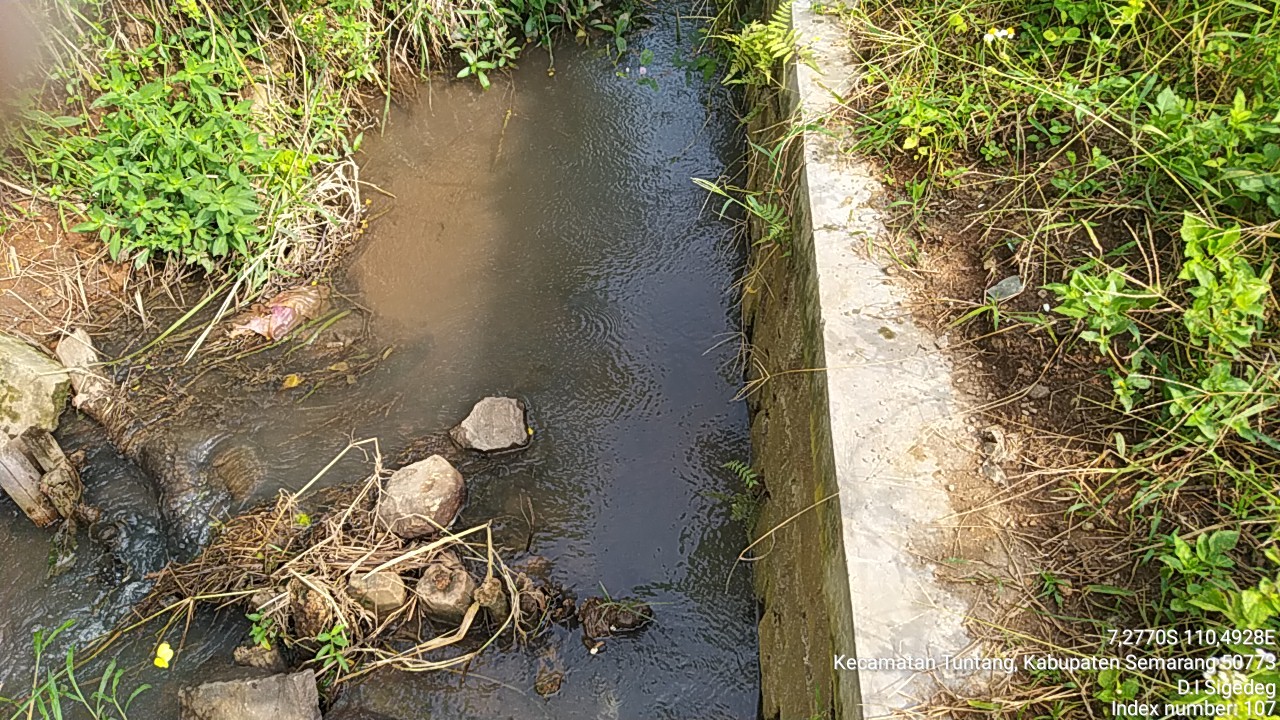

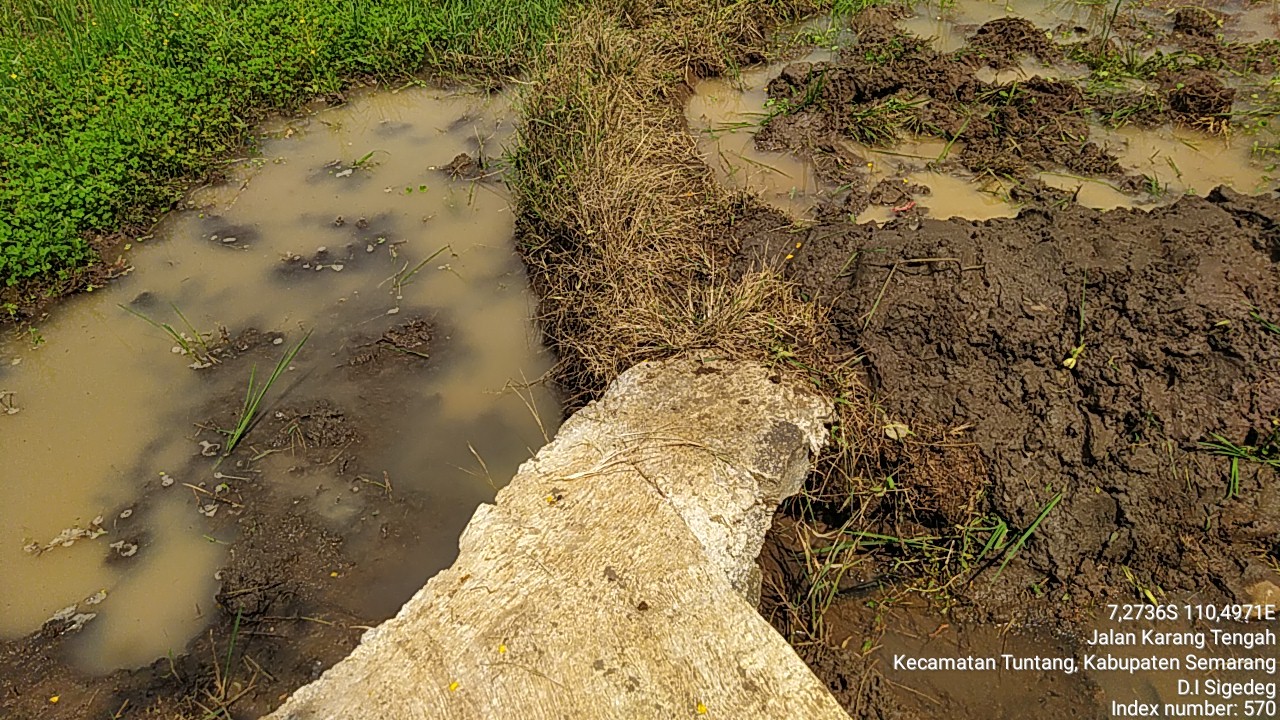

| Nama DI | Kecamatan | Desa | Nama Bangunan | Nomenklatur | X | Y | Foto |
|---|---|---|---|---|---|---|---|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Coronagn 3 ki | Cr.Sg III.3 | -7.2734109999996 | 110.490809 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 2 ki | Cr.Sg IV.2 | -7.2729869999996 | 110.493955 |
|

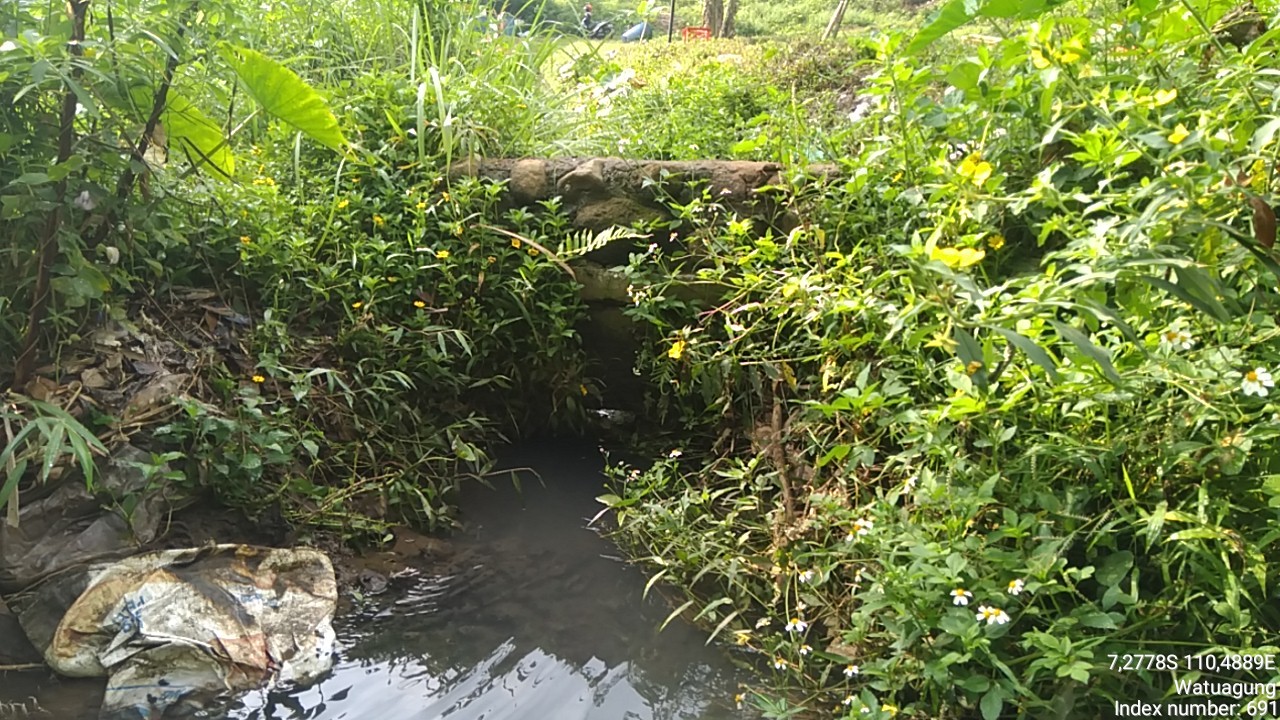

| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan Orang | B.Sg I.1a | -7.2778479999996 | 110.489629 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 3 ki | Cr.Sg I.3 | -7.2768689999996 | 110.492438 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 2 ki | Cr.Sg I.2 | -7.2766839999996 | 110.491986 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg I.1g | -7.2774379999996 | 110.493925 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong | B.Sg I.1j | -7.2770819999996 | 110.497037 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet ki | B.Sg I.1i | -7.2776519999996 | 110.496624 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg I.1m | -7.2751099999996 | 110.498756 |
|

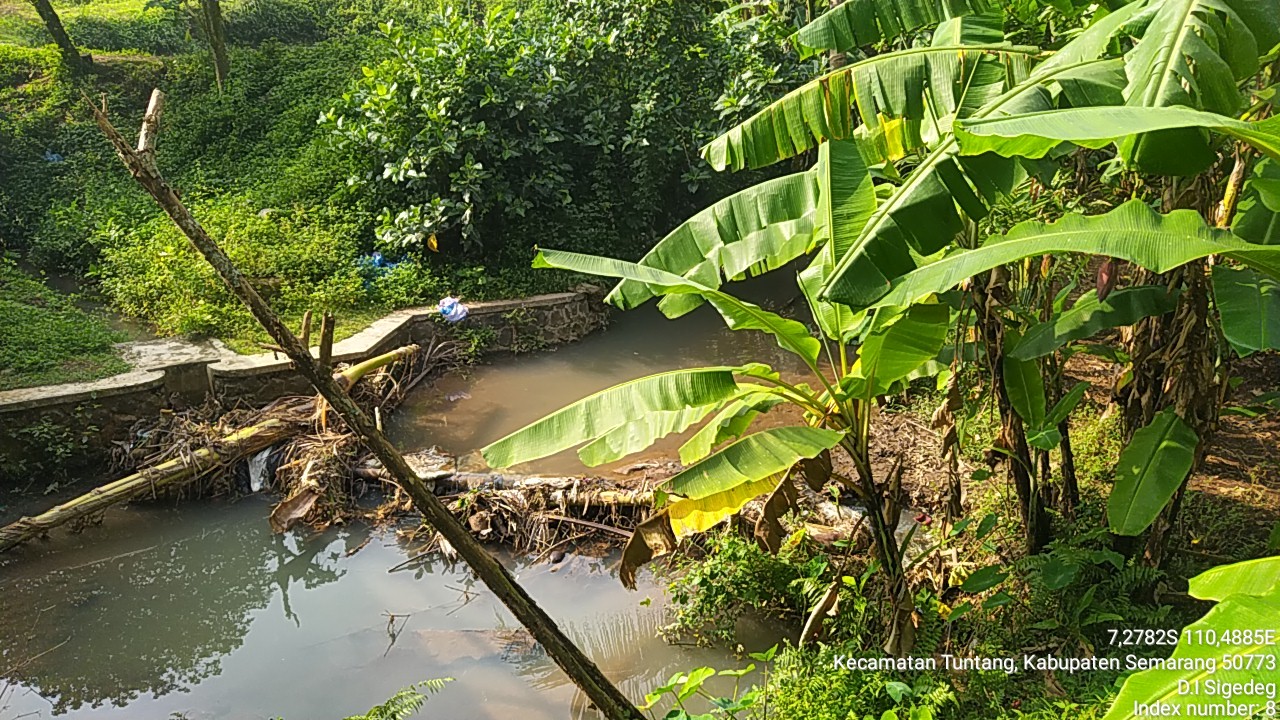

| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Bendung Sigedeg I | B.Sg I.0 | -7.2781659999996 | 110.488437 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Sadap 1 | B.Sg I.1 | -7.2746279999996 | 110.498968 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Peimpah ki | B.Sg I.1i | -7.2776519999996 | 110.496624 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong | B.Sg I.1b | -7.2776559999996 | 110.489721 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet Drain | B.Sg I.1c | -7.2775229999996 | 110.48981 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong Tol | B.Sg I.1d | -7.2774419999996 | 110.490508 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 1ki | Cr.Sg I.1 | -7.2766319999996 | 110.490745 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong | B.Sg I.1e | -7.2766199999996 | 110.491374 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 4 ki | Cr.Sg I.4 | -7.2770029999996 | 110.492872 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg I.1f | -7.2771209999996 | 110.493317 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Terjunan | B.Sg I.1h | -7.2782299999996 | 110.495529 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg I.1k | -7.2755119999996 | 110.498763 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Sadap Kanan | B.Sg I.1l | -7.2760159999996 | 110.498619 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | bendung Sigedeg II | B.Sg II.0 | -7.2777909999996 | 110.488811 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Bangunan Pertemuan | B.Sg II.1 | -7.2775249999996 | 110.489805 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Bendung Sigedeg III | B.Sg III.0 | -7.2750649999996 | 110.490515 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Sadap 1 Ka | B.Sg III.1 | -7.2735109999996 | 110.492172 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Sadap 2 | B.Sg III.2 | -7.2734019999996 | 110.493807 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Ujung saluran | B.T.Sg III.2 | -7.2729799999996 | 110.493905 |
|

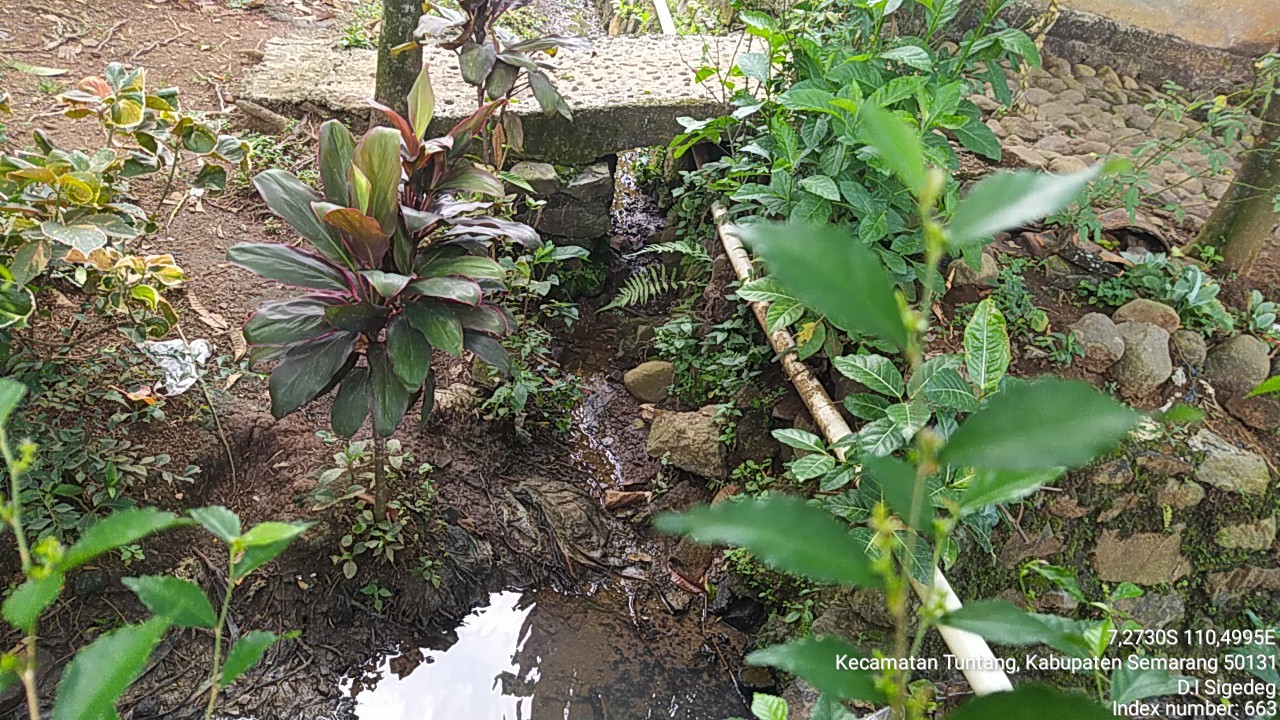

| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 1 ki | Cr.Sg III.1 | -7.2744559999996 | 110.490349 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 2 ki | Cr.Sg III.2 | -7.2735069999996 | 110.491905 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Bendung Sigedeg IV ( Simadat ) | B.Sg IV.0 | -7.2728659999996 | 110.491486 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Sadap 1 | B.Sg IV.1 | -7.2705339999996 | 110.501593 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan Orang | B.Sg IV.1c | -7.2733069999996 | 110.494175 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet ka | B.Sg IV.1d | -7.2732089999996 | 110.494469 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg IV.1e | -7.2732549999996 | 110.494668 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet ka | B.Sg IV.1f | -7.2732409999996 | 110.494875 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg IV.1g | -7.2732429999996 | 110.494983 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg IV.1a | -7.2728549999996 | 110.493546 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet ka | B.Sg IV.1b | -7.2729159999996 | 110.493717 |
|

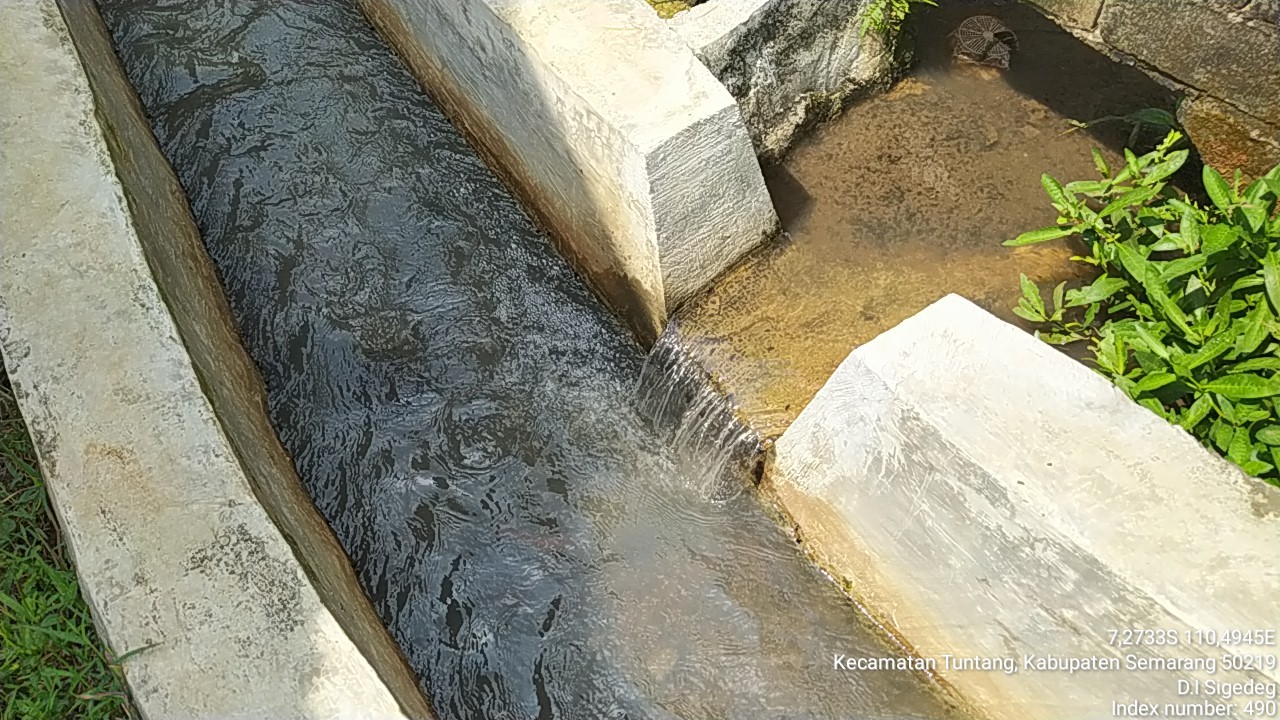

| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 3 ki | Cr.Sg IV.3 | -7.2733219999996 | 110.495617 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 5 ka | Cr.Sg IV. | -7.2735149999996 | 110.497022 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Terjunan | Cr.Sg IV.5 | -7.2735139999996 | 110.497008 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet ka | B.Sg IV.1j | -7.2727689999996 | 110.499685 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg IV.1j | -7.2727709999996 | 110.499694 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong | B.Sg IV.1l | -7.2724829999996 | 110.500262 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 4 ka | Cr.Sg IV.4 | -7.2735459999996 | 110.496387 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | jembatan orang | Cr.Sg IV.5 | -7.2735069999996 | 110.497009 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 6 ki | Cr.Sg IV.6 | -7.2735319999996 | 110.497172 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corong 7 ki | Cr.Sg IV.7 | -7.2734299999996 | 110.497833 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Terjunan | B.Sg IV.1i | -7.2729319999996 | 110.499505 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet ka | B.Sg IV.1i | -7.2729299999996 | 110.499504 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong | B.Sg IV.1n | -7.2719739999996 | 110.500402 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan orang | B.Sg IV.1o | -7.2714889999996 | 110.501203 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 1 ki | Cr.Sg IV.1 | -7.2728059999996 | 110.493397 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong | B.Sg IV.1h | -7.2734629999996 | 110.497607 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corongan 8 ki | Cr.Sg IV.8 | -7.2734129999996 | 110.498302 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Inlet ka | B.Sg IV.1k | -7.2725879999996 | 110.499851 |
|

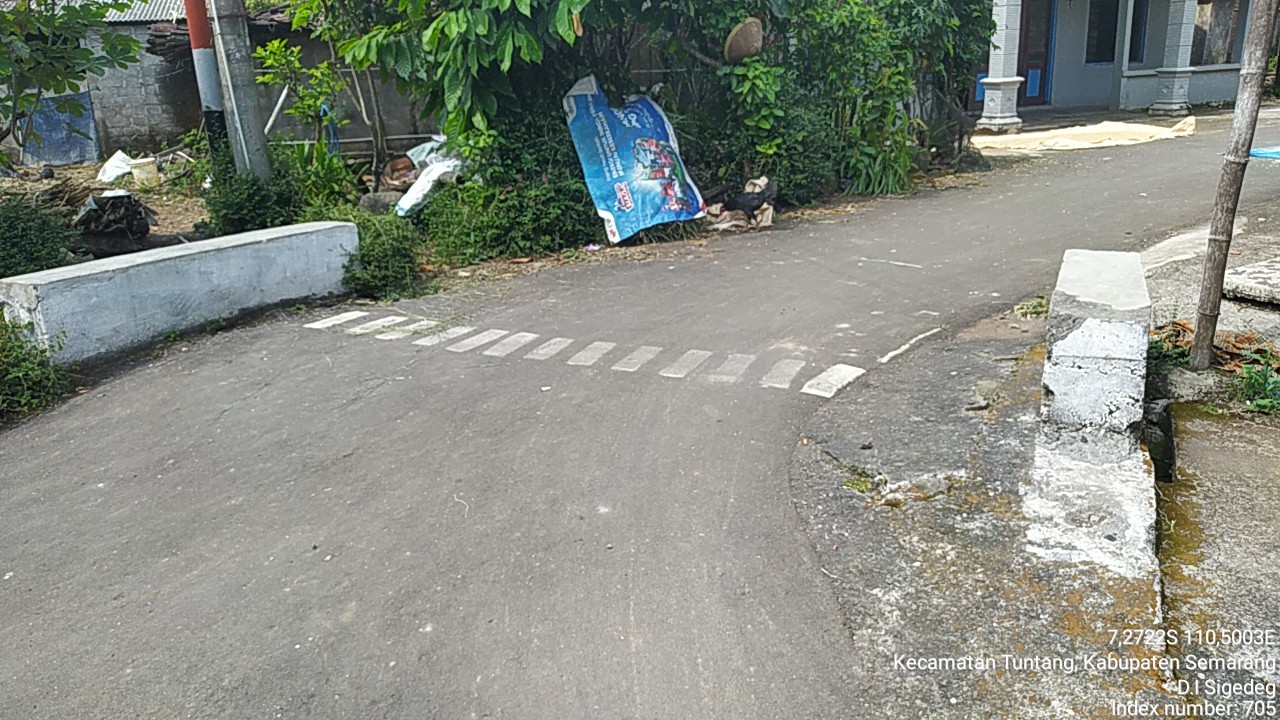

| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Gorong-gorong | B.Sg IV.1m | -7.2722529999996 | 110.500306 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Corong 5 ka | Cr.Sg.5 | -7.2770719999996 | 110.497045 |
|
| DI Sigedeg | Kec. Tuntang | Ds. Watu Agung | Jembatan | B.Sg I.1 | -7.2760169999996 | 110.498618 |
|
