Detail Daerah Irigasi
Detail Daerah Irigasi di Kabupaten SemarangData Daerah Irigasi
| Nama Daerah Irigasi | DI Karanglo | ||
| Kecamatan | Kec. Bringin | ||
| Desa | Ds. Bringin | ||
| Jenis Klasifikasi Bangunan | - | ||
| Luas Potensial | 427 Ha | ||
| Luas Fungsional | 304 Ha | ||
| Luas Baku | 427 Ha | ||
| Indeks Kondisi Sistem Irigasi (IKSI) | 73.52 % | ||
| Panjang Sal. Primer | 6,814.03 m | Kondisi | Rusak Berat |
| Panjang Sal. Sekunder | 1,583.29 m | Kondisi | Rusak Berat |
| Panjang Sal. Tersier | 0.00 m | Kondisi | Rusak Berat |
| Panjang Sal. Total | 7.11 km | Kondisi Sal. Baik | 0.10 m |
| Kondisi Sal. Rusak Ringan | 3.50 m | ||
| Kondisi Sal. Rusak Sedang | 3.51 m | ||
| Kondisi Sal. Rusak Berat | 0.00 m | ||
| Kelompok P3A | Ketua P3A | ||
| Kelompok GP3A | Ketua GP3A | ||
| Kelompok IP3A | Ketua IP3A | ||
| Skema Jaringan |
data_daerah_irigasi_skema_jaringan_1756117726_Skema Jaringan Karanglo1.pdf
data_daerah_irigasi_skema_jaringan_1756117731_Skema Jaringan Karanglo2.pdf |
||
| Skema Bangunan |
data_daerah_irigasi_skema_bangunan_1756117737_Skema Bangunan Karanglo1.pdf
data_daerah_irigasi_skema_bangunan_1756117741_Skema Bangunan Karanglo2.pdf |
||
Saluran
| Nama DI | Kecamatan | Desa | Nama Saluran | Panjang Saluran (m) |
|---|---|---|---|---|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Saluran Primer Karanglo | 6,814.03 |
| DI Karanglo | Kec. Bringin | Ds. Bringin | Saluran Sekunder Karanglo | 1,583.29 |
| DI Karanglo | Kec. Bringin | Ds. Bringin | Saluran Tersier Karanglo | 0.00 |
Sawah
| Nama DI | Kecamatan | Desa | Luas Baku (Ha) | Luas Potensial (Ha) | Luas Fungsional (Ha) | Keterangan |
|---|---|---|---|---|---|---|
| DI Karanglo | Kec. Bringin | Ds. Bringin | 427 | 427 | 304 | DI Sesuai Permen PUPR No.14/2015 |
Bangunan
| Nama DI | Kecamatan | Desa | Nama Bangunan | Nomenklatur | X | Y | Foto |
|---|---|---|---|---|---|---|---|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Jembatan | B.Kr.2a | -7.2536239999996 | 110.519961 |
|

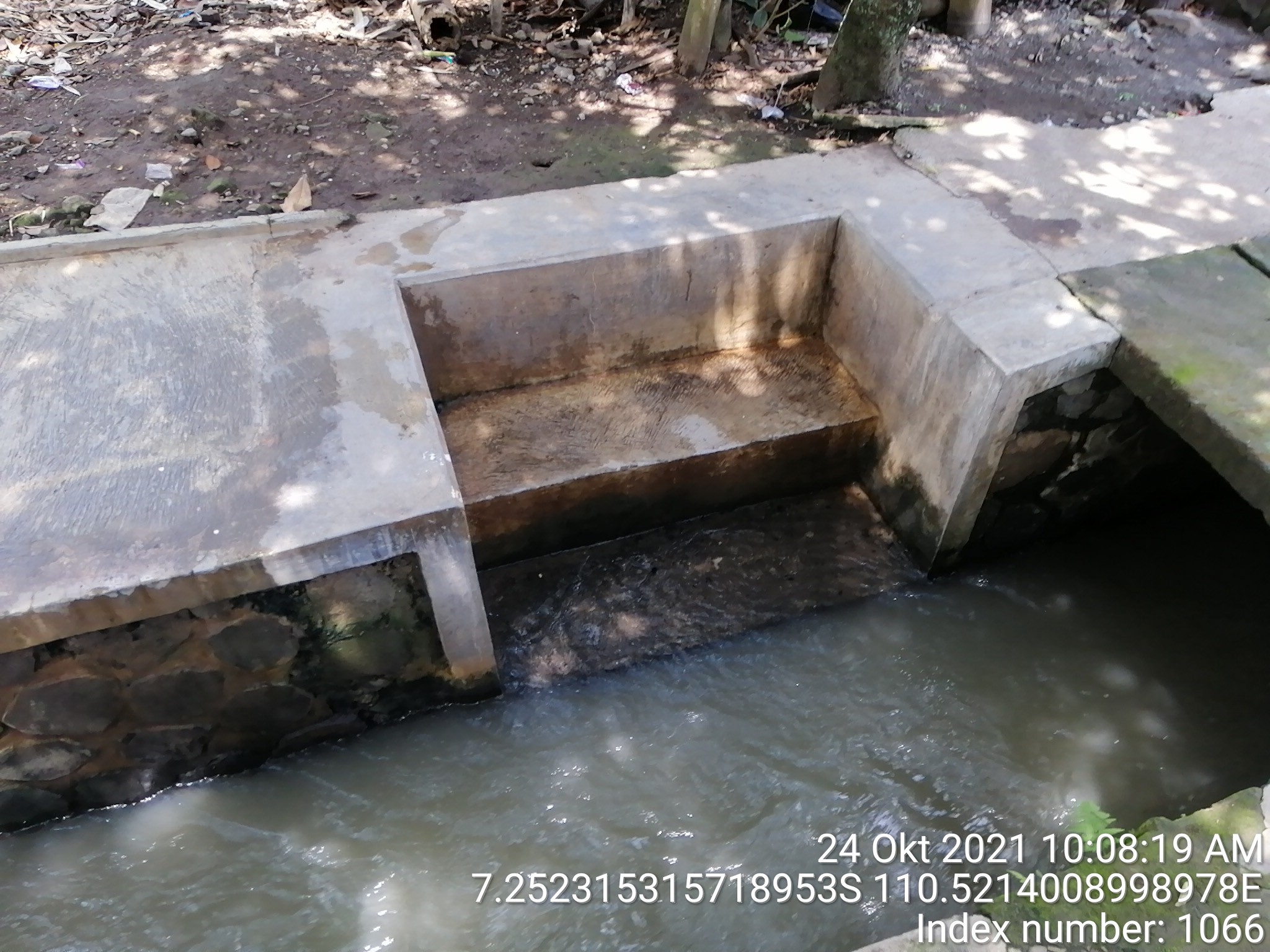

| DI Karanglo | Kec. Bringin | Ds. Bringin | Tangga cuci | B.Kr.2d | -7.2522909999996 | 110.521338 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Tempat Mandi Hewan | B.Kr.2c | -7.2528879999996 | 110.521077 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corongan Kiri | Cr.S.Kr.6 | -7.2526459999996 | 110.532242 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong Ka | Cr.S.Kr.4 | -7.2527519999996 | 110.528735 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Crossdrain | B.Kr.1d | -7.2589839999996 | 110.516061 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Tangga Cuci | Cr.Kr.1 | -7.2547549999996 | 110.519029 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Tangga Cuci | B.Kr.1k | -7.2544099999996 | 110.519107 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Inlet | B.Kr.3b | -7.2513199999996 | 110.518888 |
|

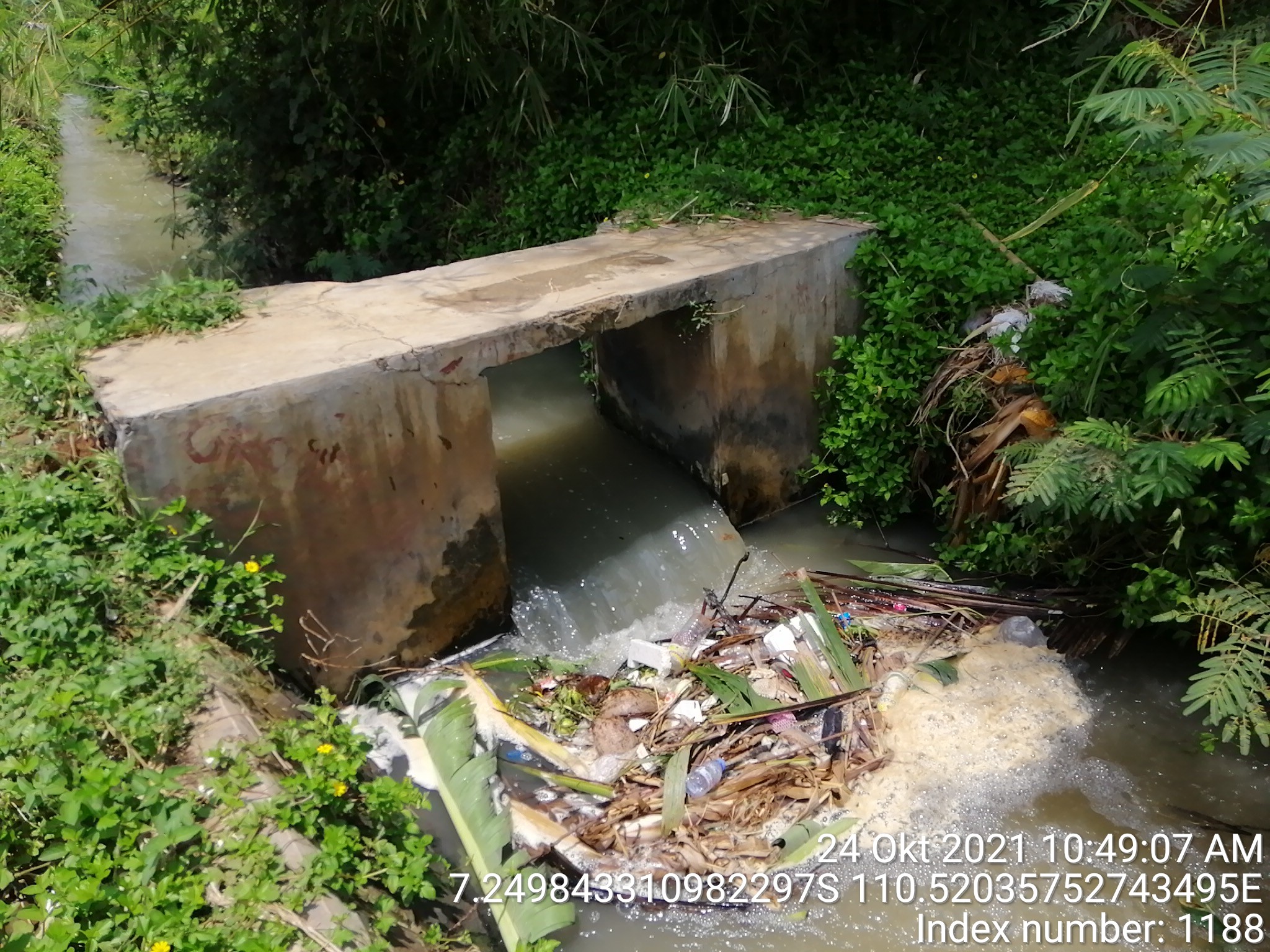

| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.3f | -7.2491679999996 | 110.520885 |
|

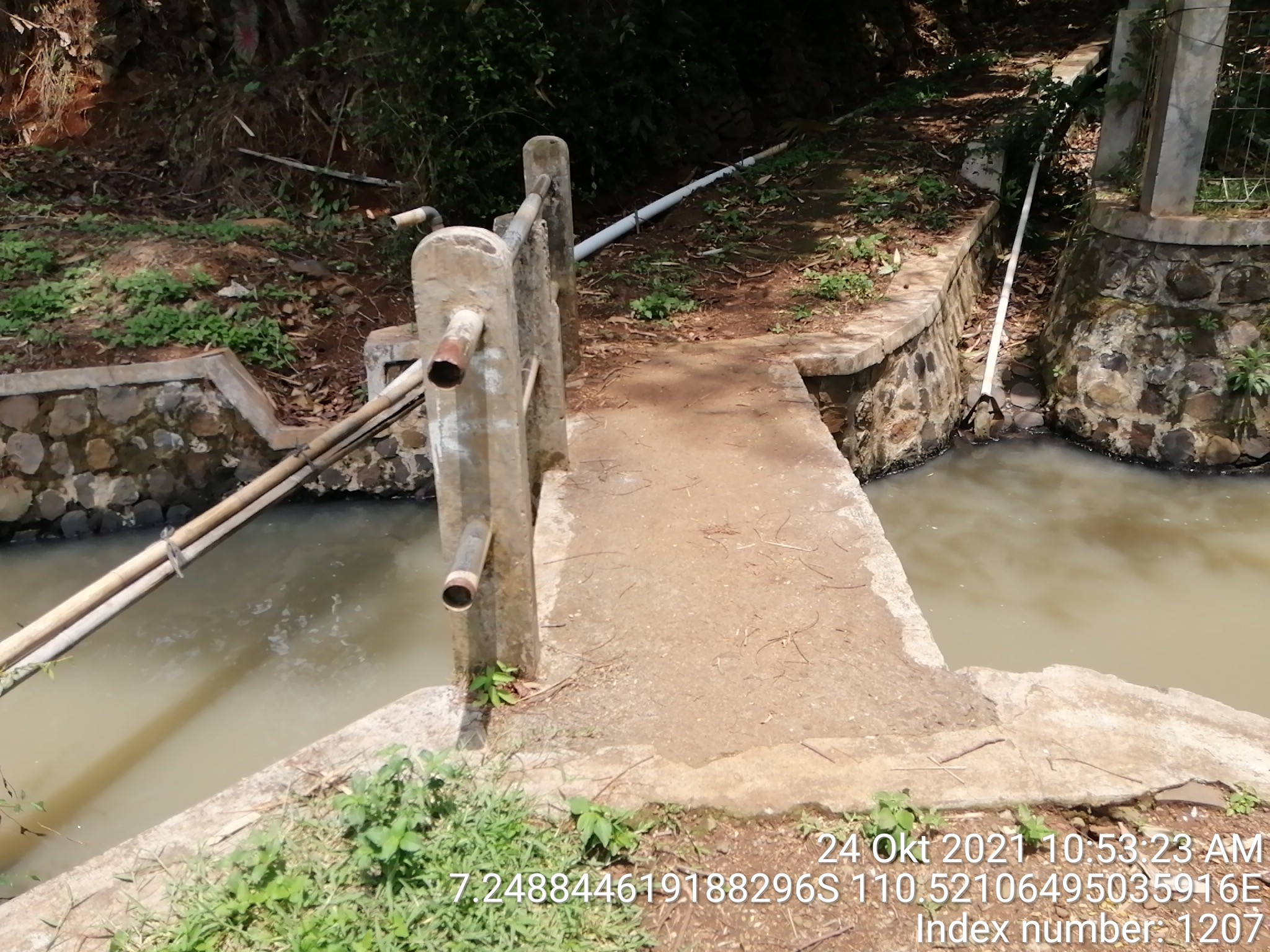

| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.Kr.3g | -7.2488739999996 | 110.521068 |
|

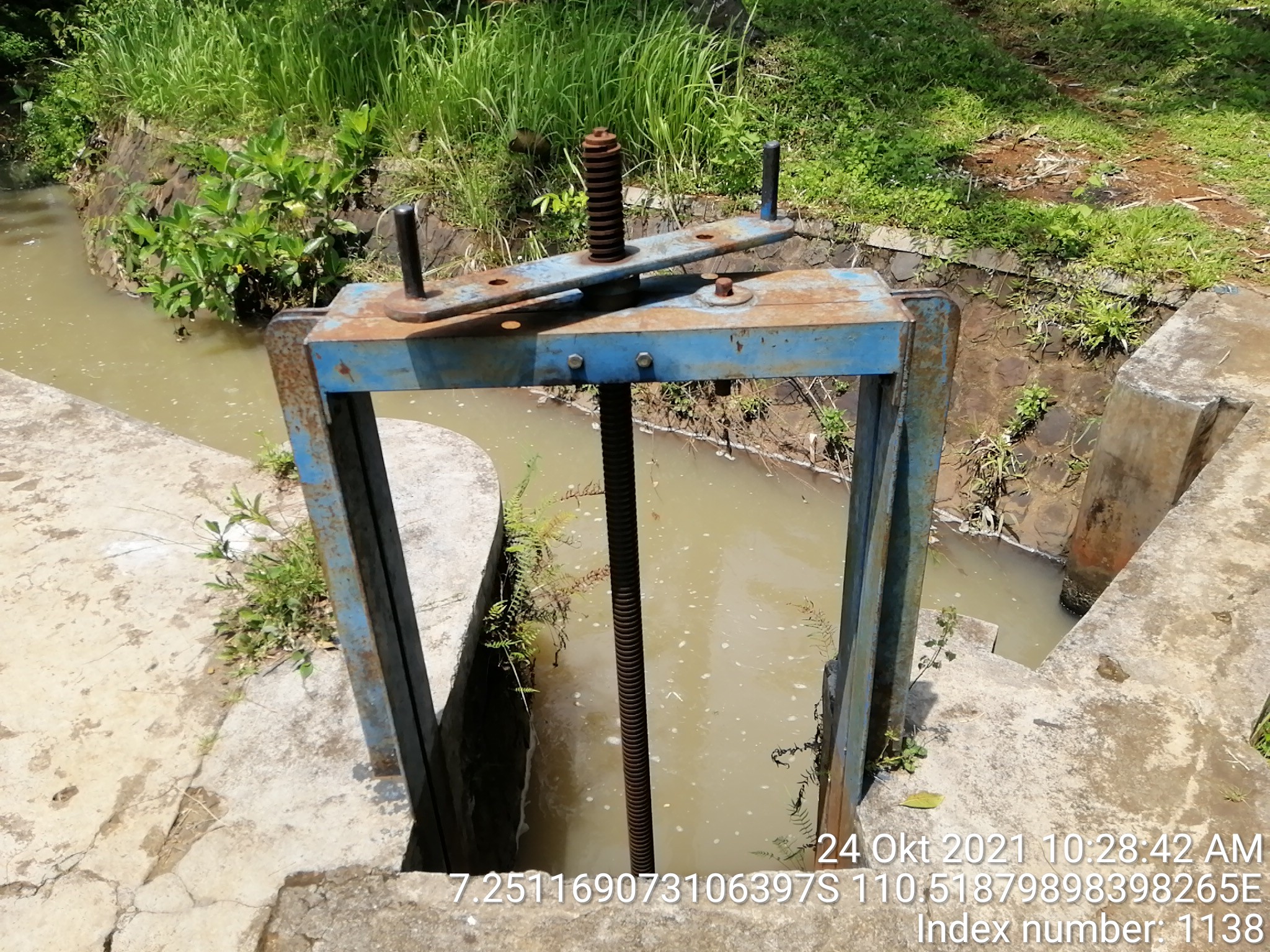

| DI Karanglo | Kec. Bringin | Ds. Bringin | Pintu penguras | B.Kr.3c | -7.2511839999996 | 110.518811 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.3a | -7.2514299999996 | 110.519349 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Inlet | B.Kr.3i | -7.2481319999996 | 110.522059 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Pelimpah Ka | B.Kr.3c | -7.2511279999996 | 110.518818 |
|

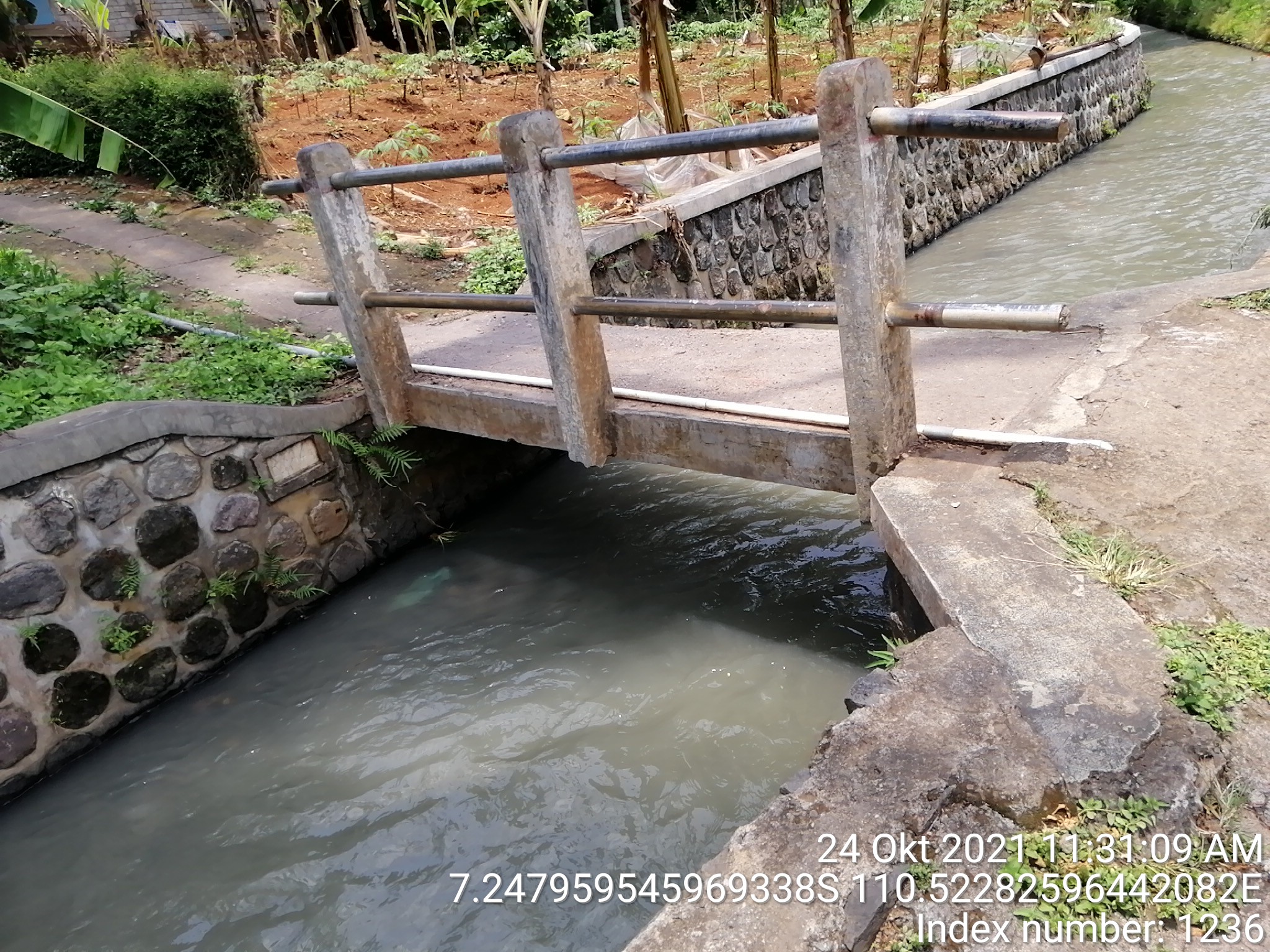

| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.Kr.3j | -7.2480169999996 | 110.522846 |
|

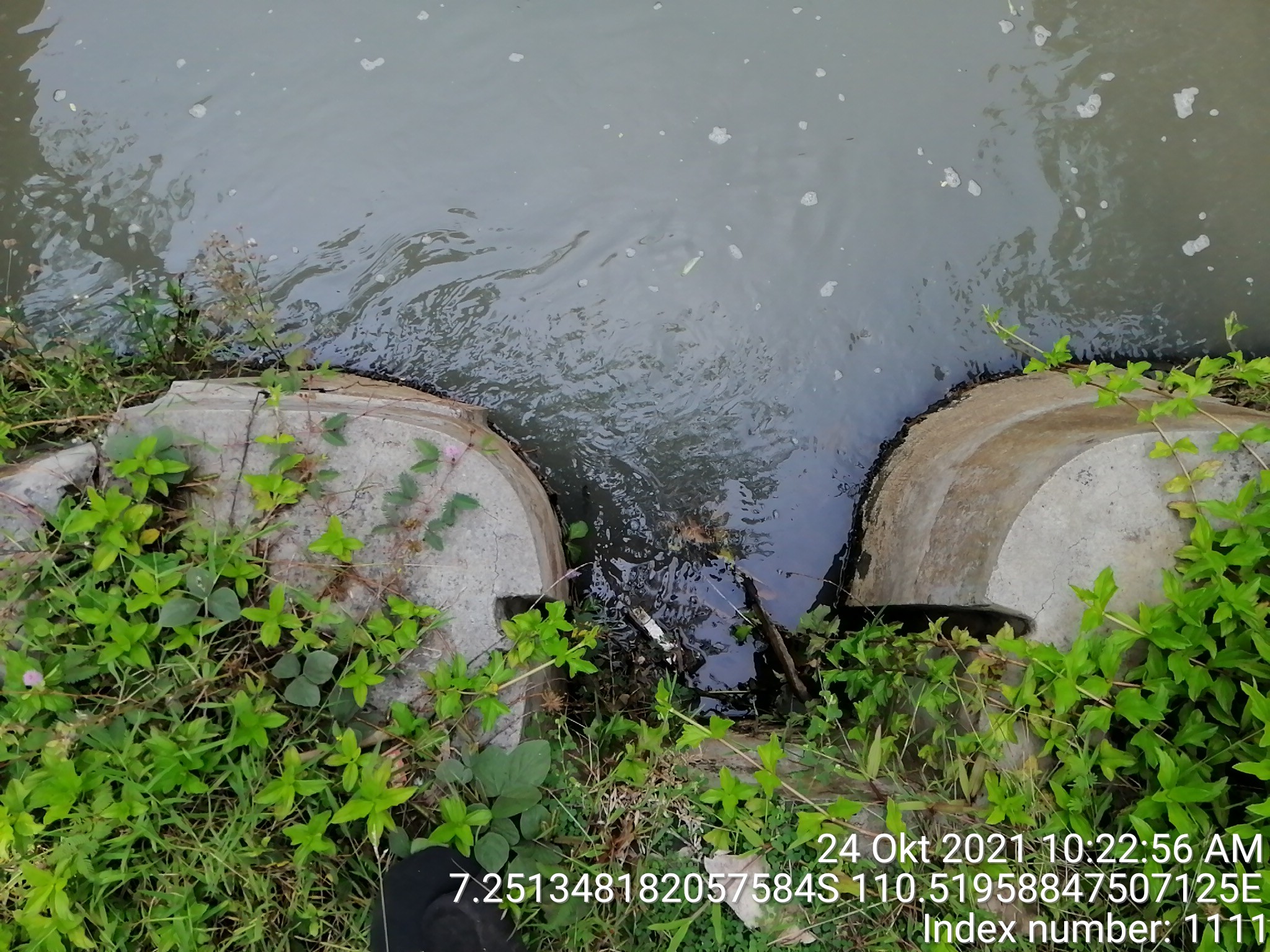

| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong Ka | Cr.Kr.2 | -7.2514059999996 | 110.519539 |
|

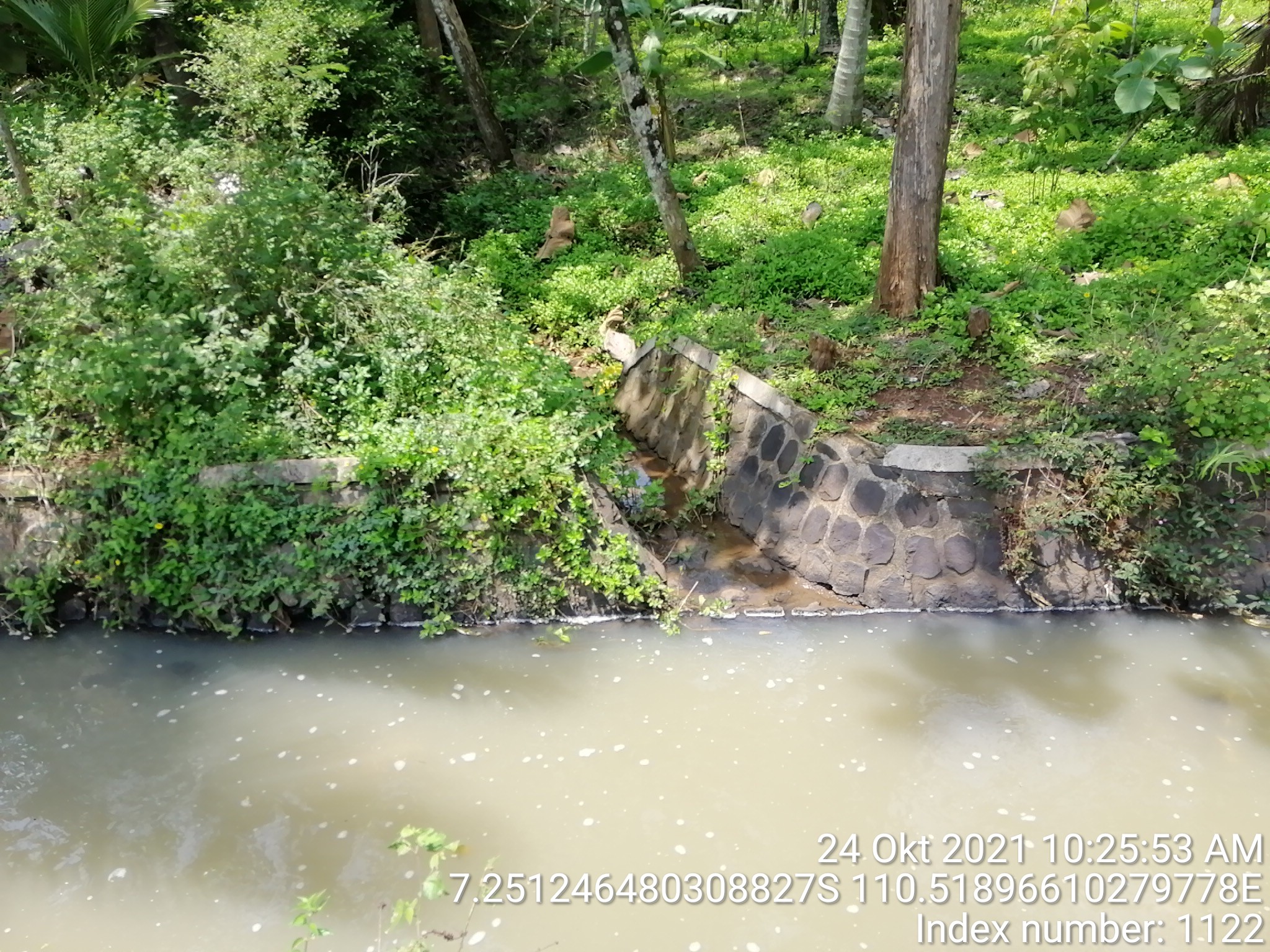

| DI Karanglo | Kec. Bringin | Ds. Bringin | Suplesi Ki | B.Kr.3c | -7.2511969999996 | 110.518814 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.Kr.3n | -7.2462059999996 | 110.52517 |
|

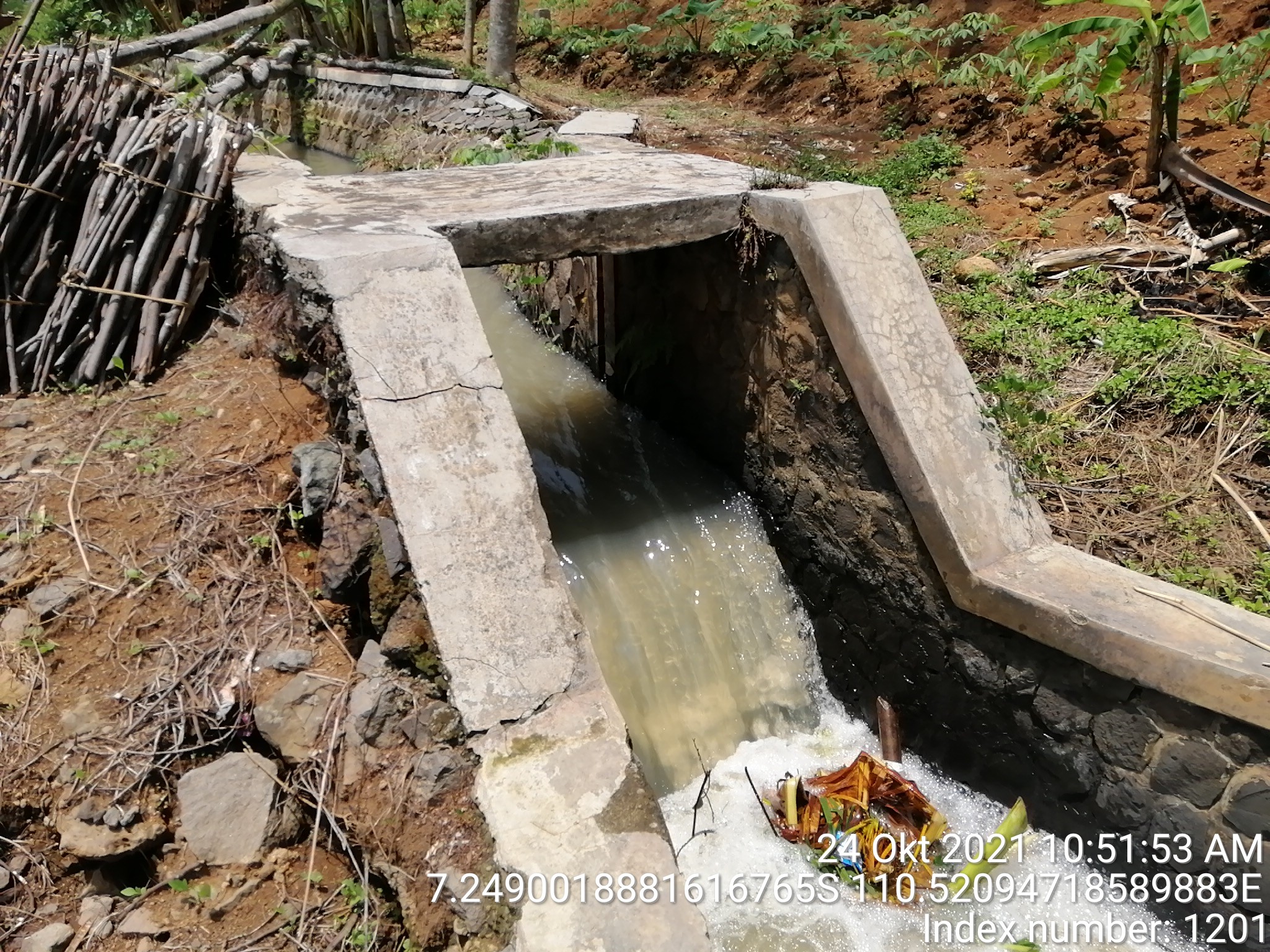

| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.3e | -7.2498599999996 | 110.52036 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.3l | -7.2466479999996 | 110.524581 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.3k | -7.2474649999996 | 110.52331 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Pelimpah Ka | B.Kr.3k | -7.2474949999996 | 110.523225 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.3m | -7.2464979999996 | 110.524866 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corongan Kanan | Cr.S.Kr.3 | -7.2533249999996 | 110.525133 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong Ka | Cr.Kr.1 | -7.2547549999996 | 110.519032 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Crossdrain | B.Kr.1e | -7.2584049999996 | 110.515938 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Crossdrain | B.Kr.1f | -7.2580089999996 | 110.515939 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap kanan | B.Kr.2 | -7.2520169999996 | 110.521265 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong ka | Cr.Kr.3 | -7.2502869999996 | 110.519401 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corongan Kanan | Cr.S.Kr.1 | -7.2533439999996 | 110.524166 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong Kiri | Cr.Tr.Kr.2ka.1 | -7.2518769999996 | 110.521176 | |
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong Kanan | Cr.Tr.Kr.4ki.1 | -7.2416319999996 | 110.527596 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.Kr.9a | -7.2352039999996 | 110.540503 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.8a | -7.2344099999996 | 110.537767 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Kanan 8 | B.Kr.8 | -7.2363289999996 | 110.538021 |
|

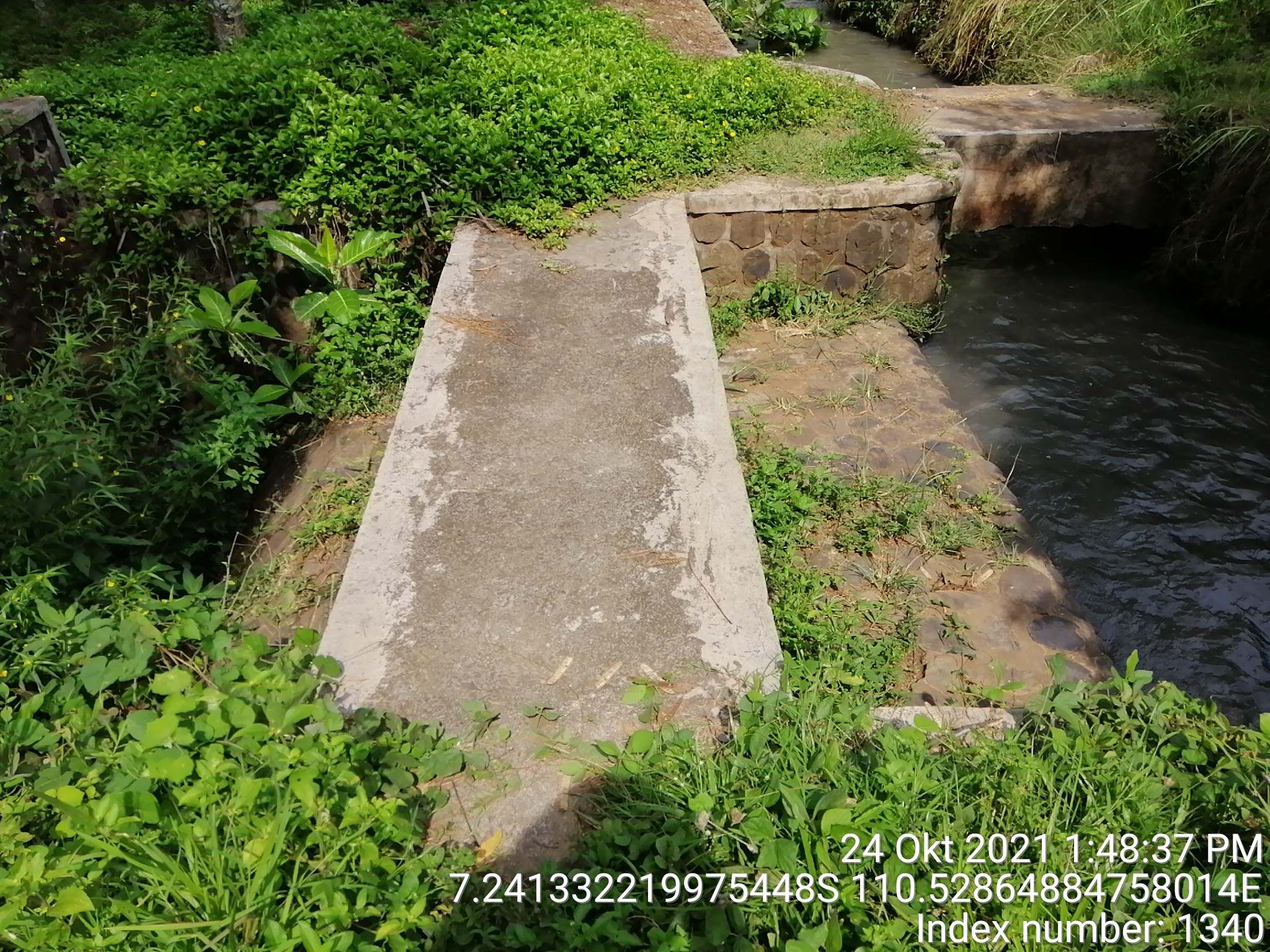

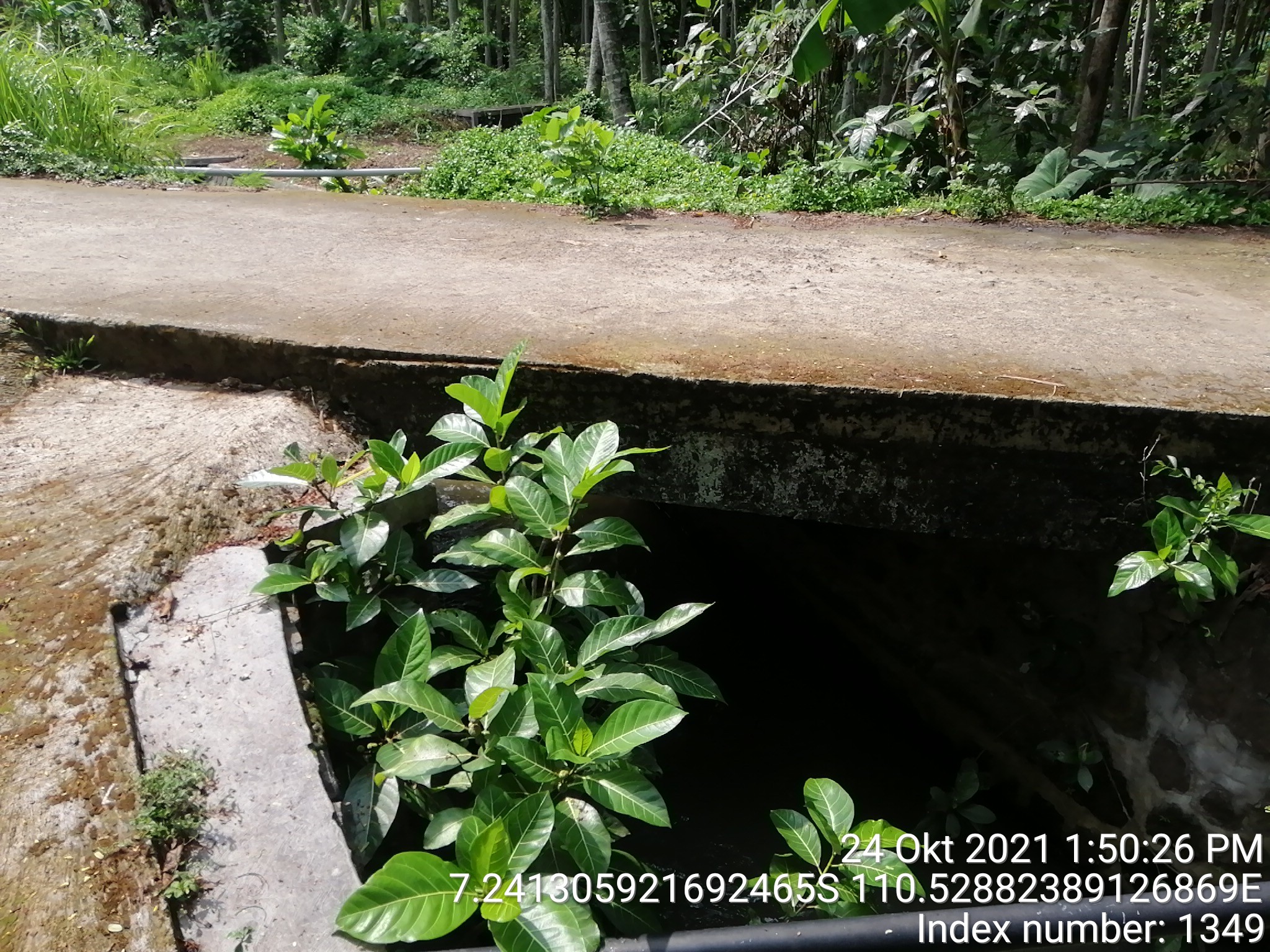

| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.Kr.5b | -7.2412539999996 | 110.528774 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong Ki | Cr.S.Kr.5 | -7.2527249999996 | 110.528879 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.8b | -7.2345849999996 | 110.538324 |
|

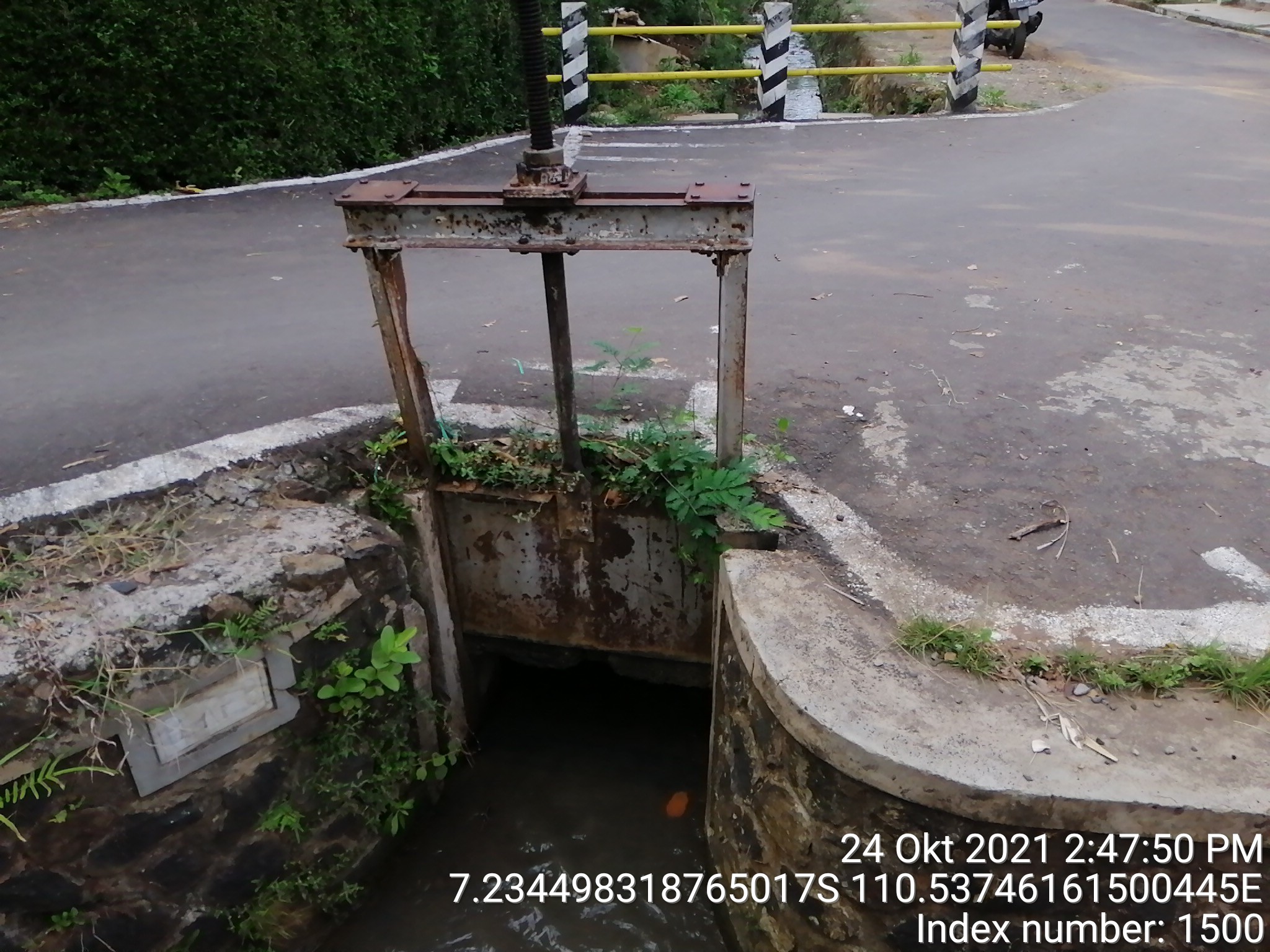

| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Kanan 9 | B.Kr.9 | -7.2349019999996 | 110.541449 |
|

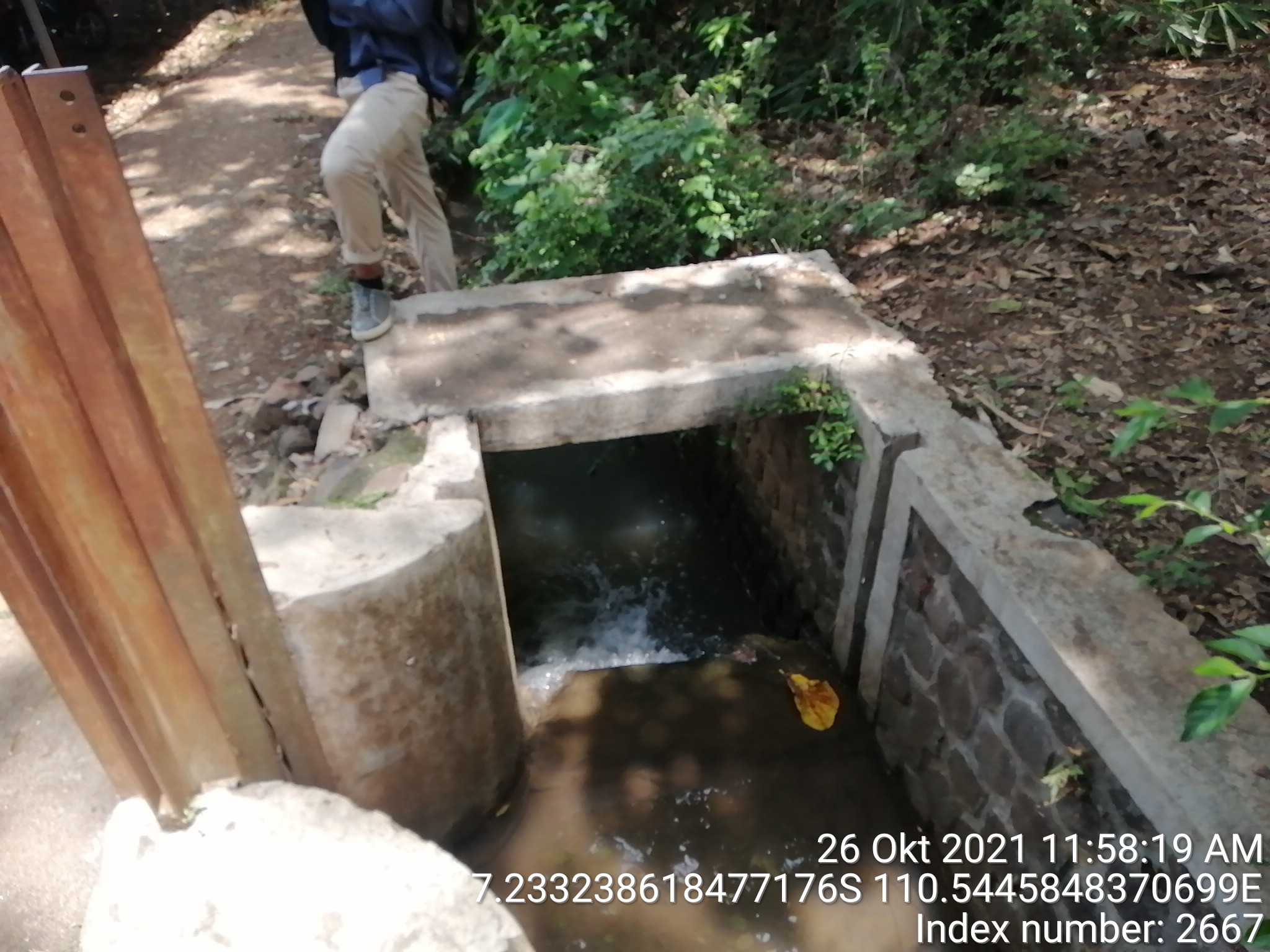

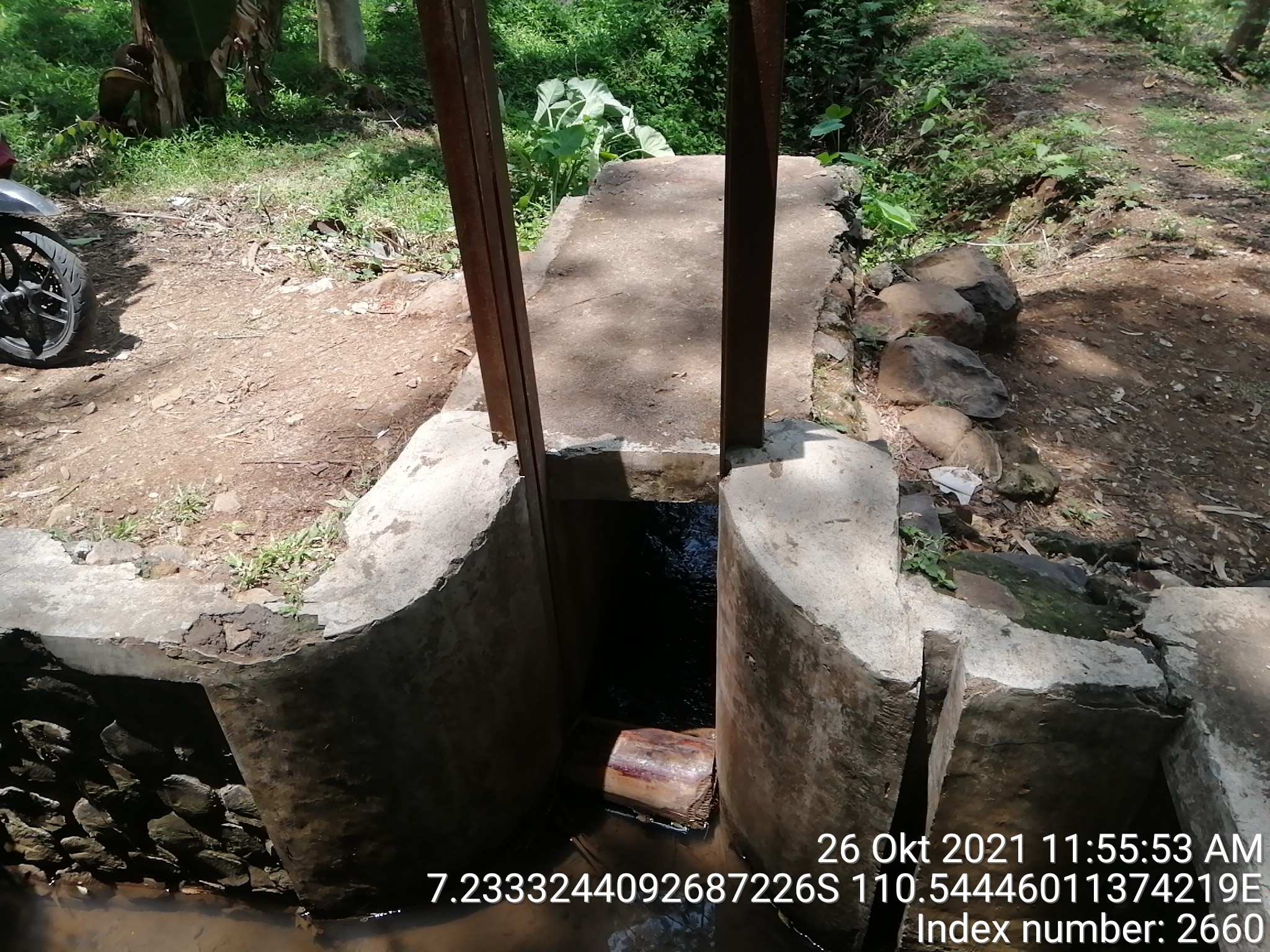

| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap kiri 10 | B.Kr.10 | -7.2332559999996 | 110.54454 |
|

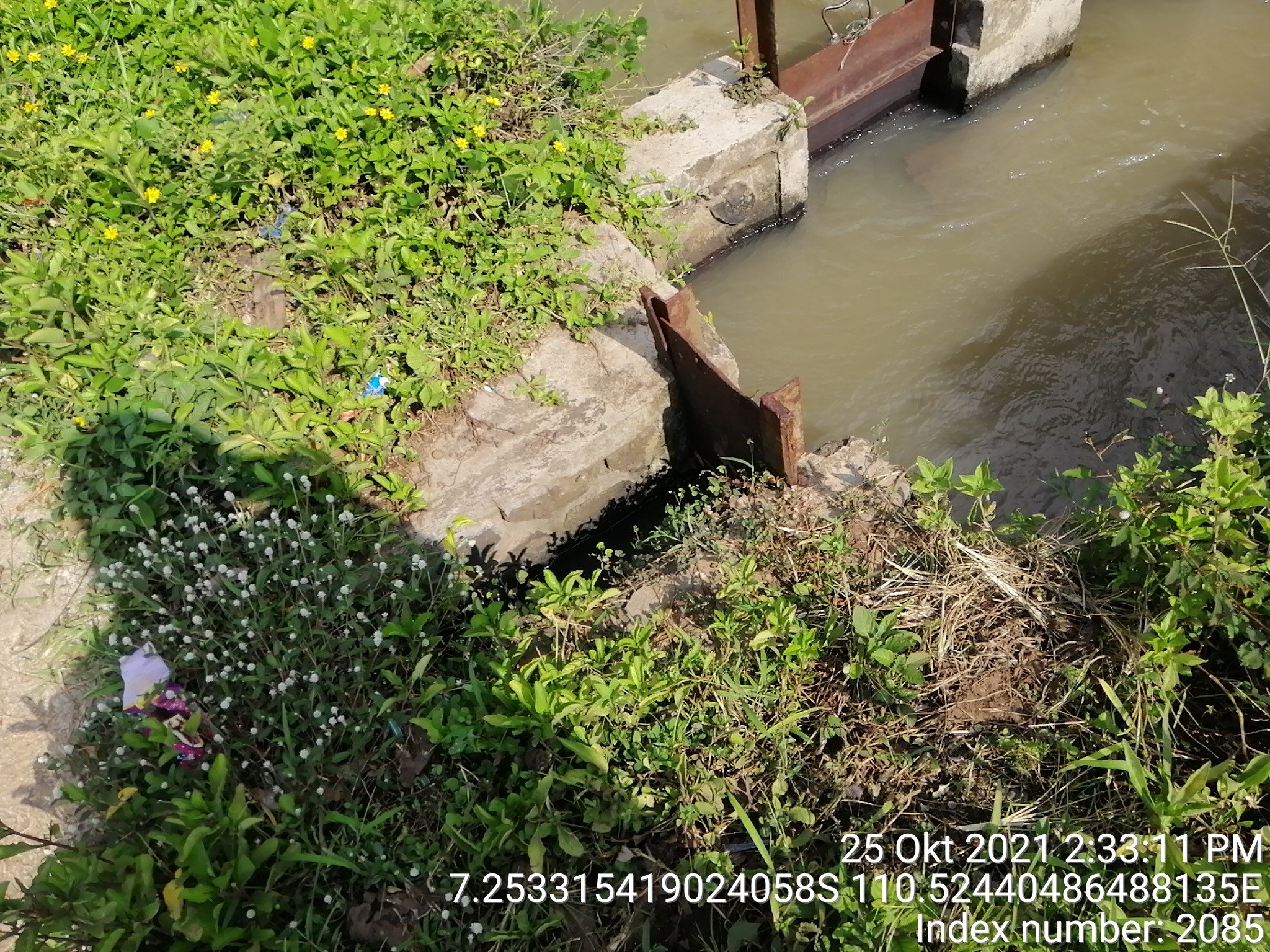

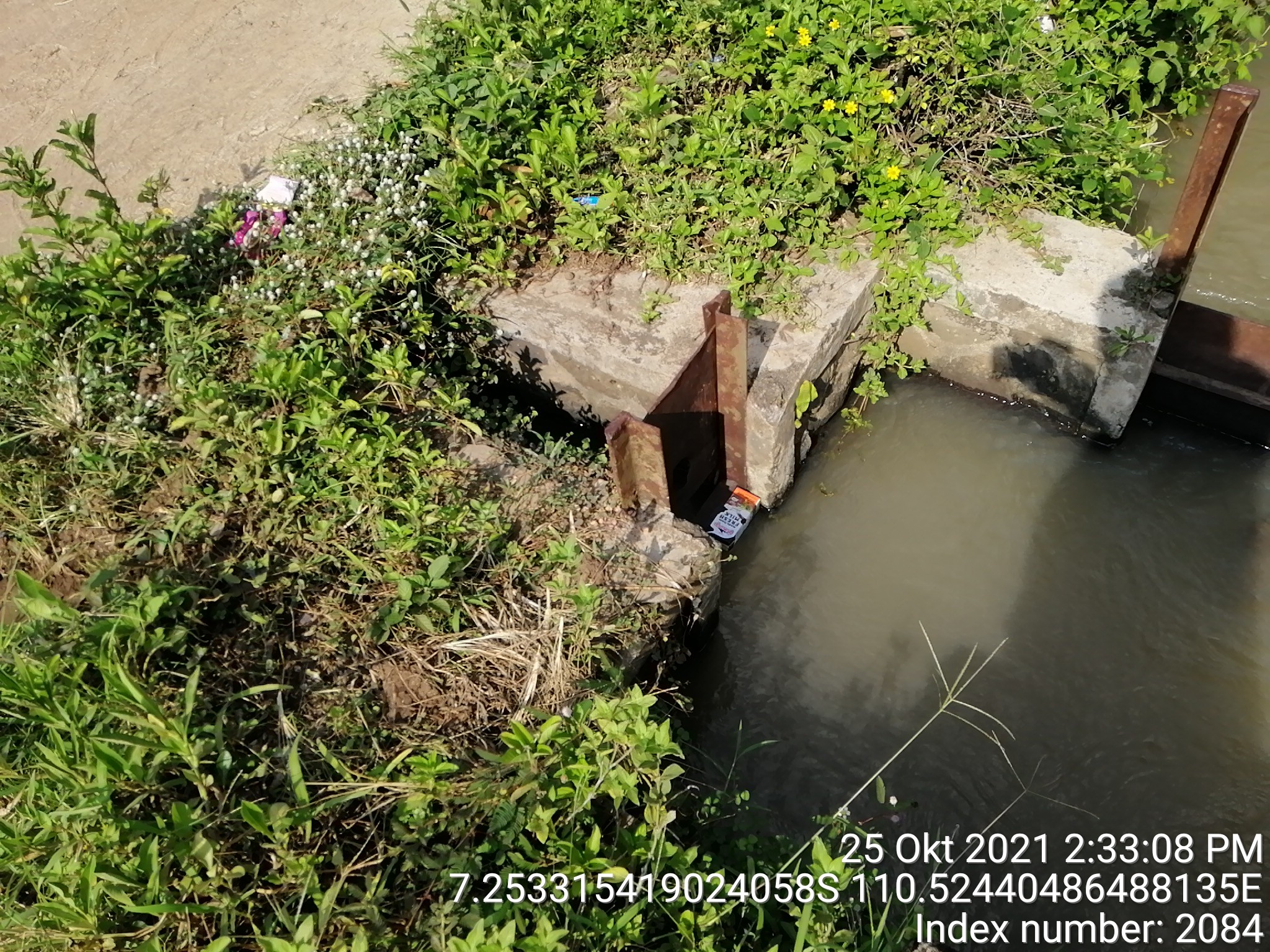

| DI Karanglo | Kec. Bringin | Ds. Bringin | Corongan Kiri | Cr.S.Kr.2 | -7.2533209999996 | 110.52443 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.S.Kr.1c | -7.2534319999996 | 110.522909 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.S.Kr.1d | -7.2533289999996 | 110.524338 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.S.Kr.1e | -7.2532979999996 | 110.525816 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.S.Kr.1f | -7.2532149999996 | 110.531648 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Ki | B.Kr.4 | -7.2416329999996 | 110.527597 |
|

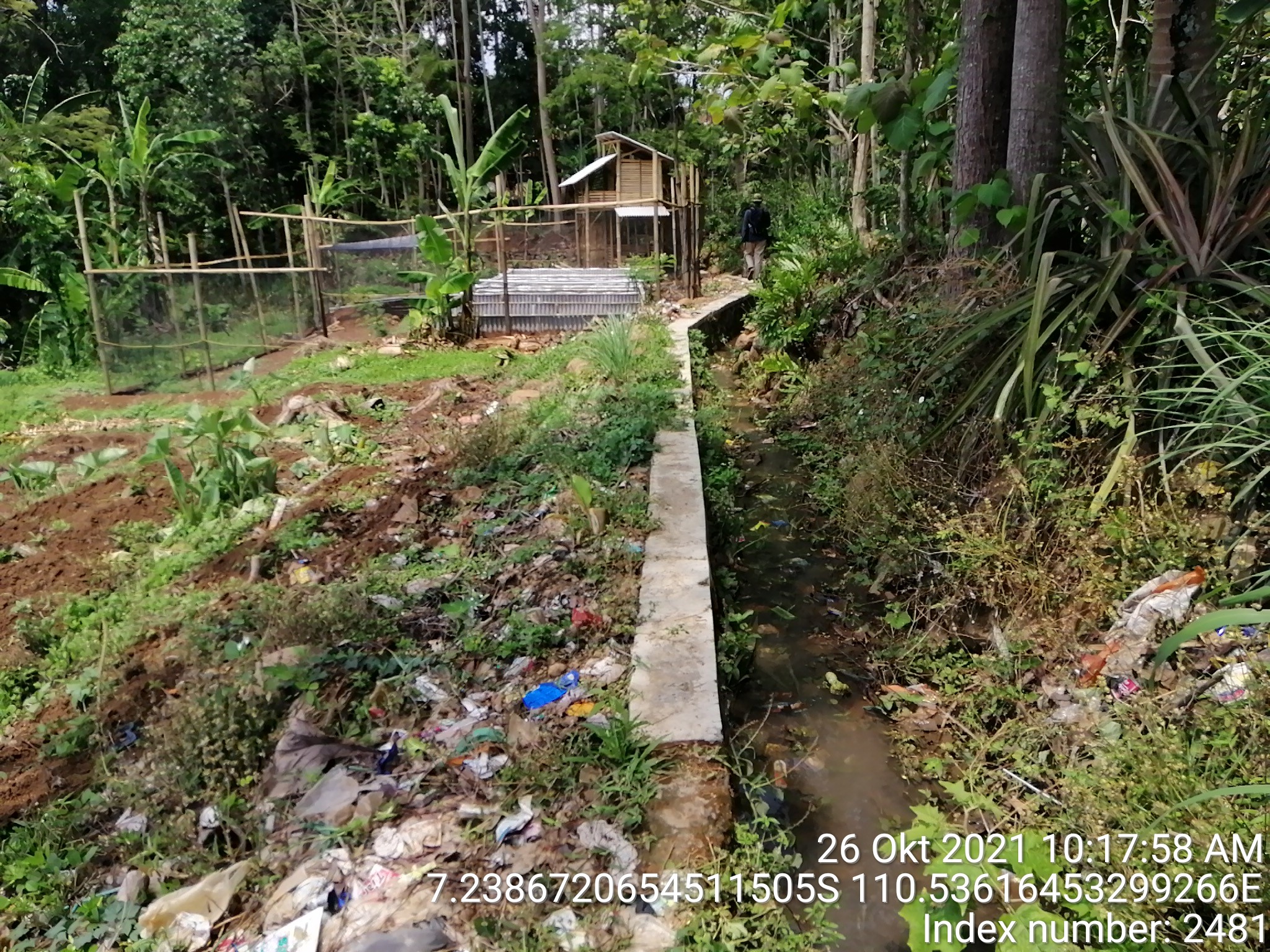

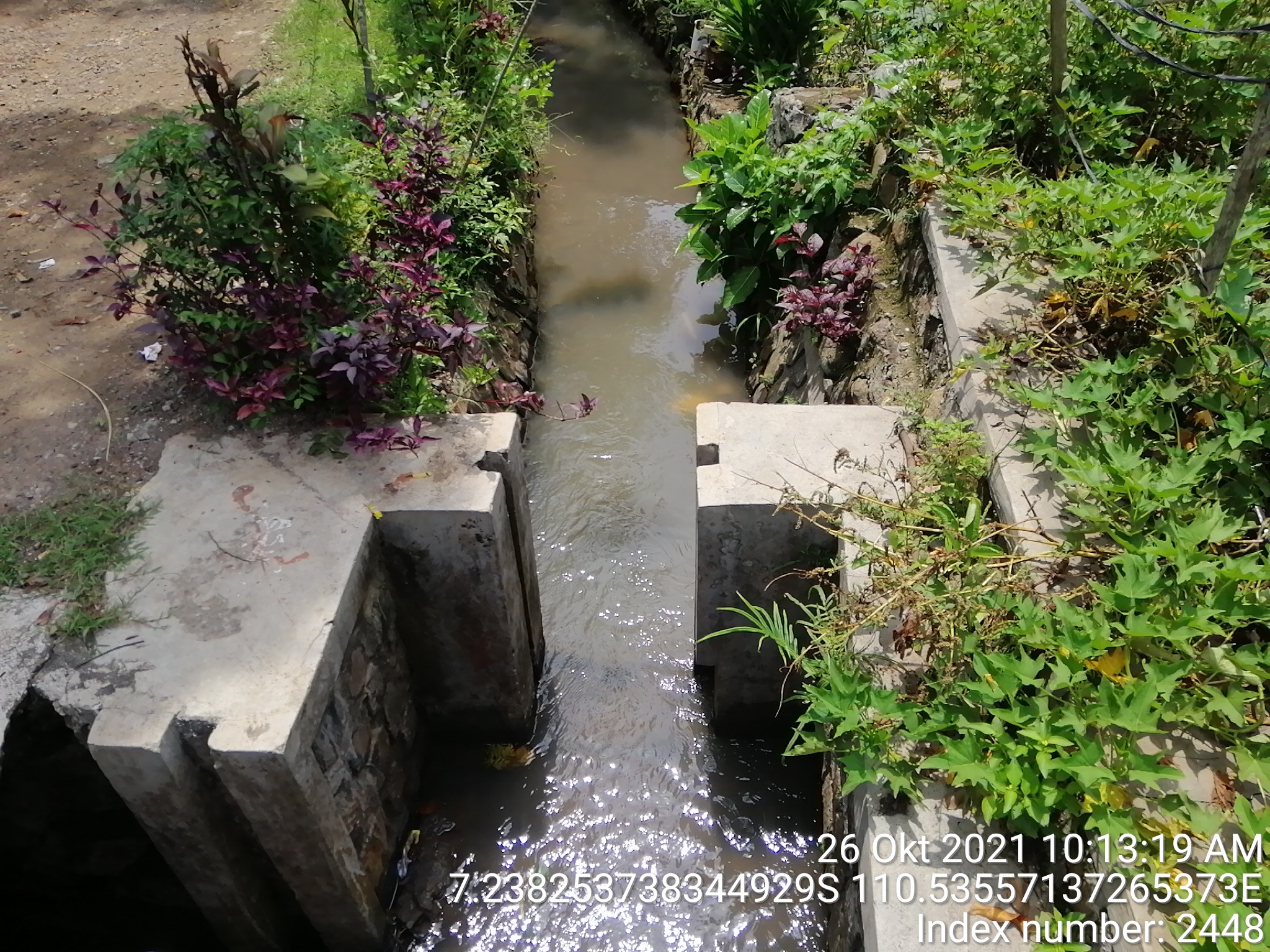

| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.6a | -7.2384789999996 | 110.534173 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.7a | -7.2375159999996 | 110.535685 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Pelimpah Ki | B.Kr.5a | -7.2412629999996 | 110.528631 |
|

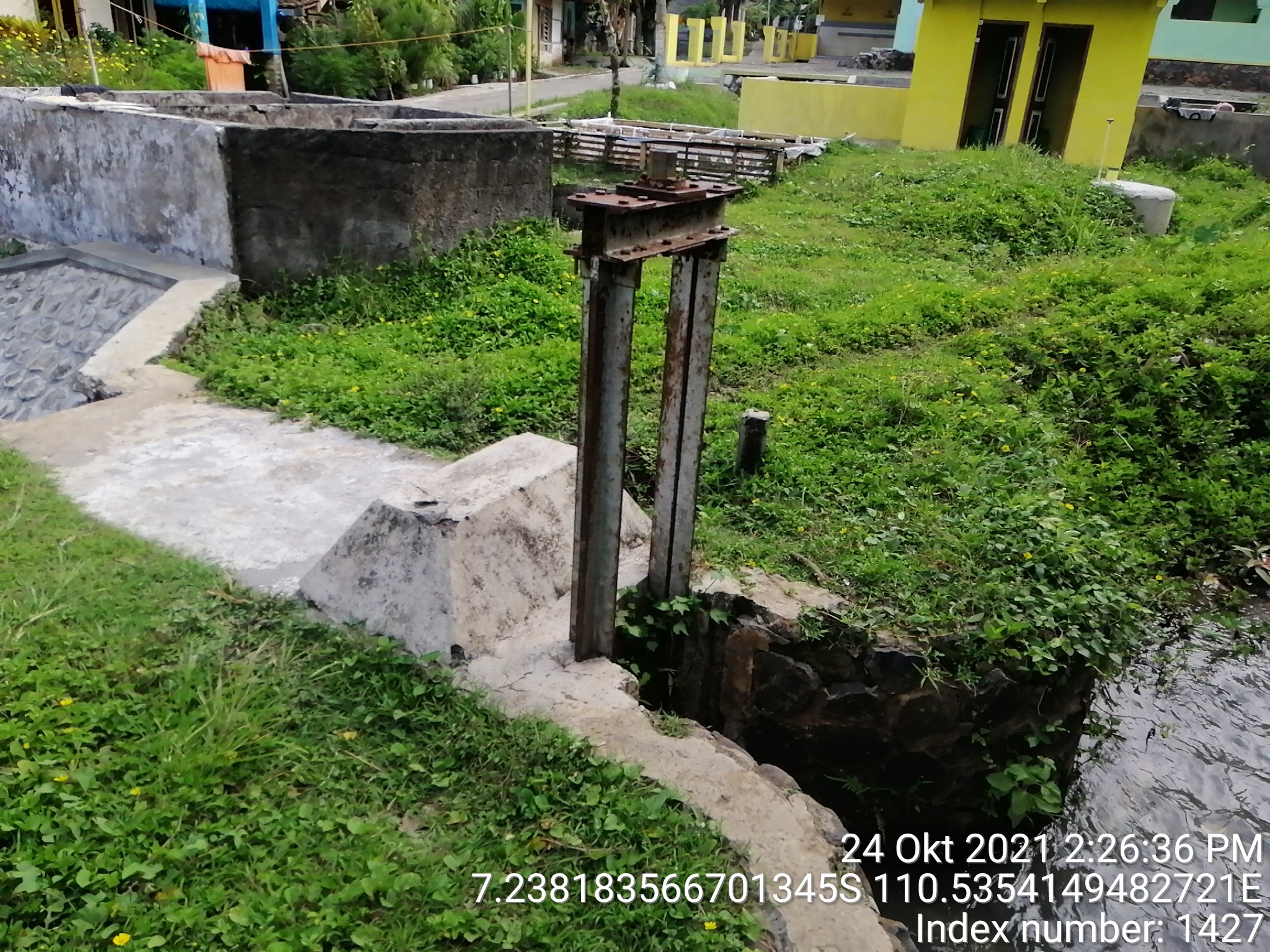

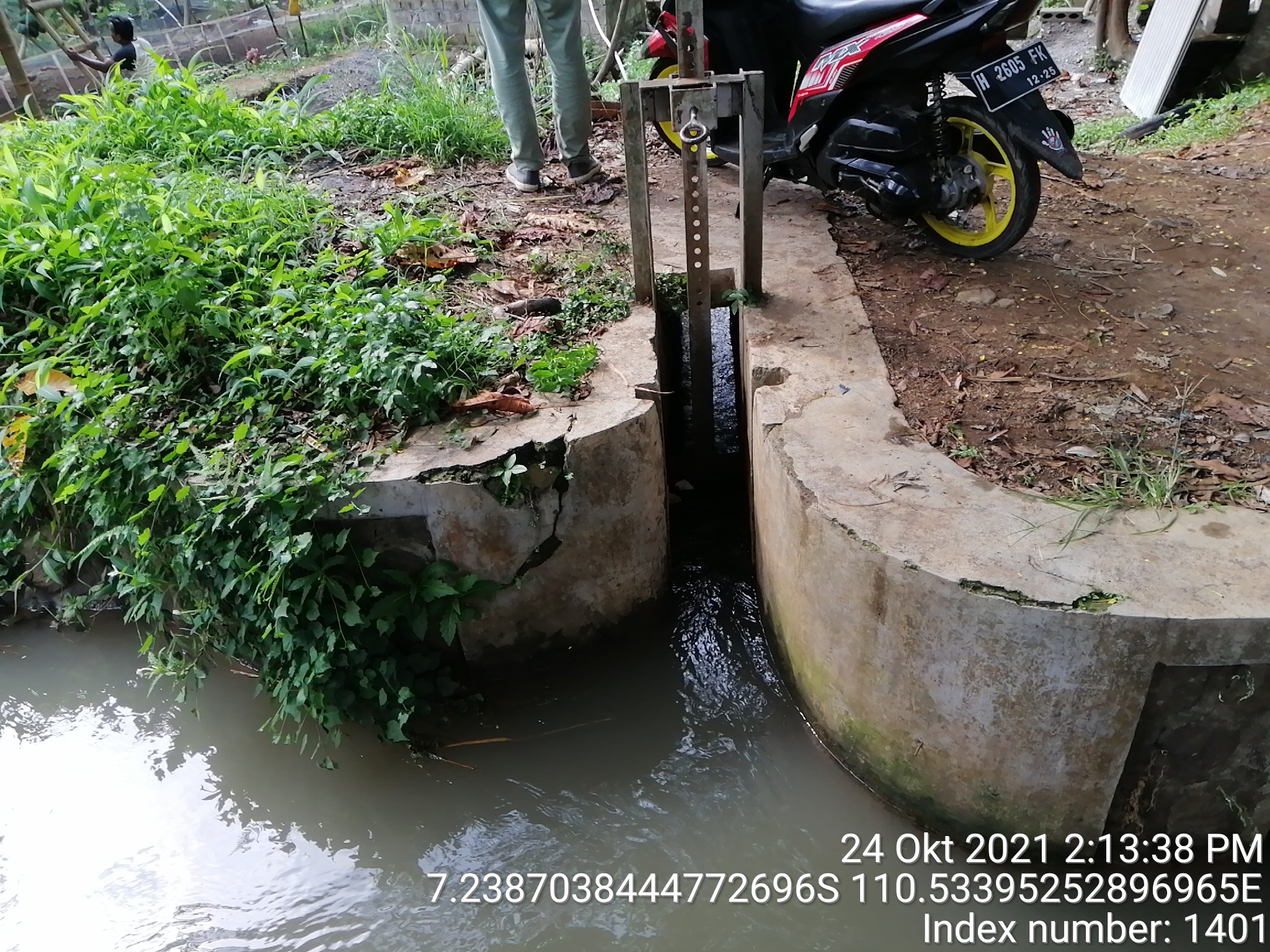

| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Ka | B.Kr.6 | -7.2381439999996 | 110.535399 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.5e | -7.2398099999996 | 110.532868 |
|

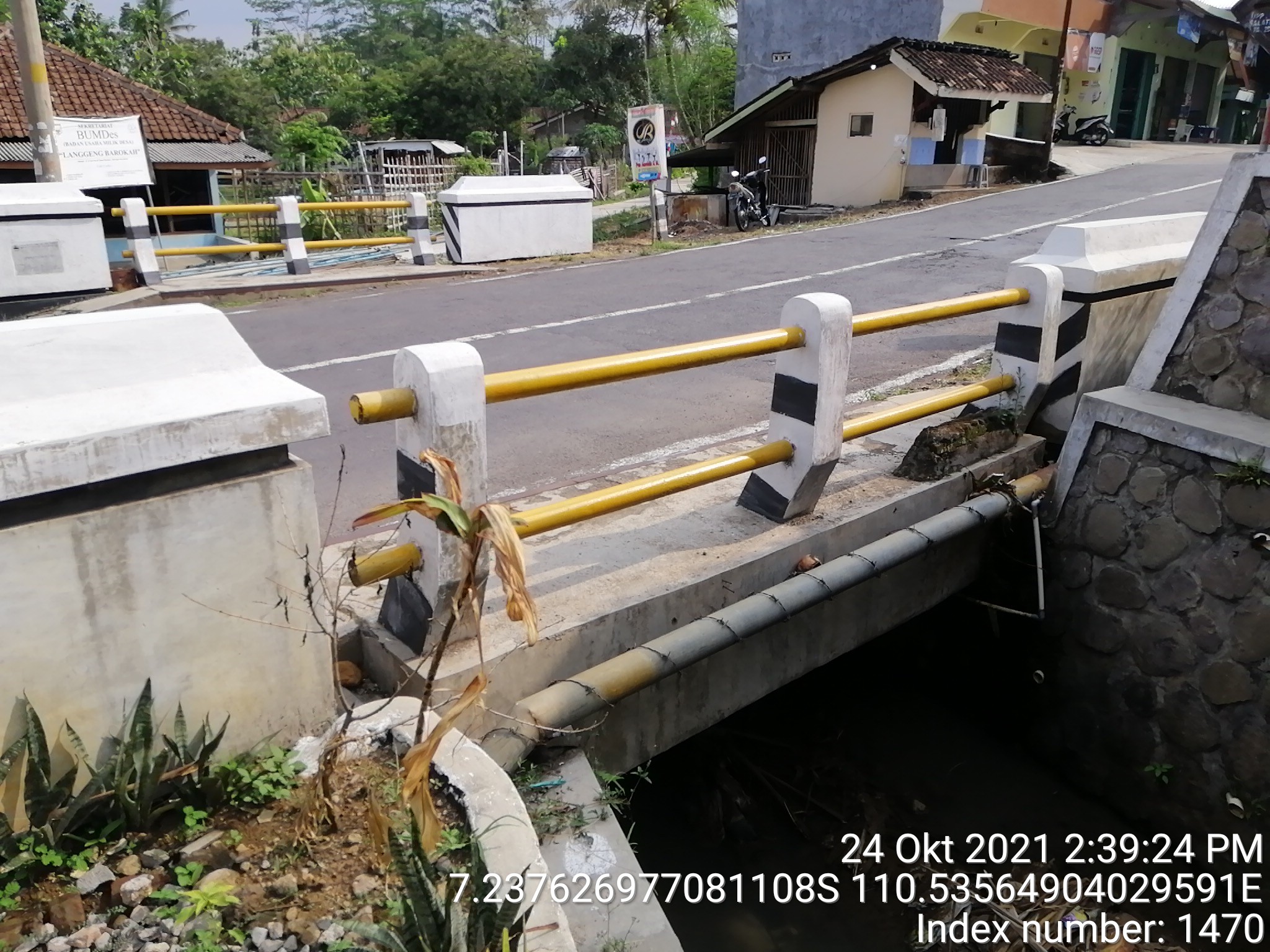

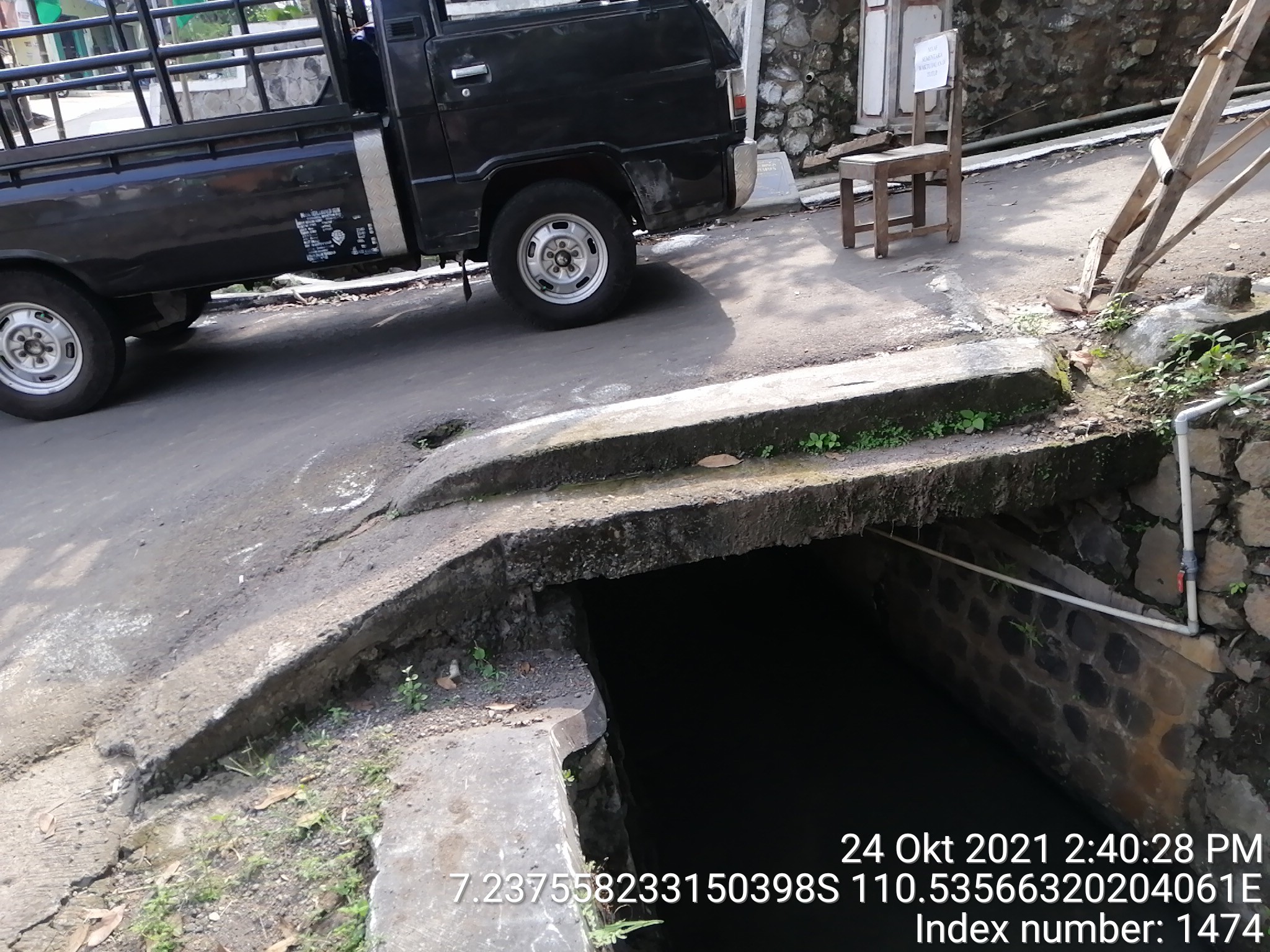

| DI Karanglo | Kec. Bringin | Ds. Bringin | Jembatan Desa | B.Kr.7a | -7.2375979999996 | 110.535649 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.4 | -7.2417299999996 | 110.527593 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Corong kiri | Cr.Kr 4 | -7.2349019999996 | 110.541449 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Ka | B.Kr.1 | -7.2537569999996 | 110.519699 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Talang | Cr.Kr.1 | -7.2546829999996 | 110.519019 |
|

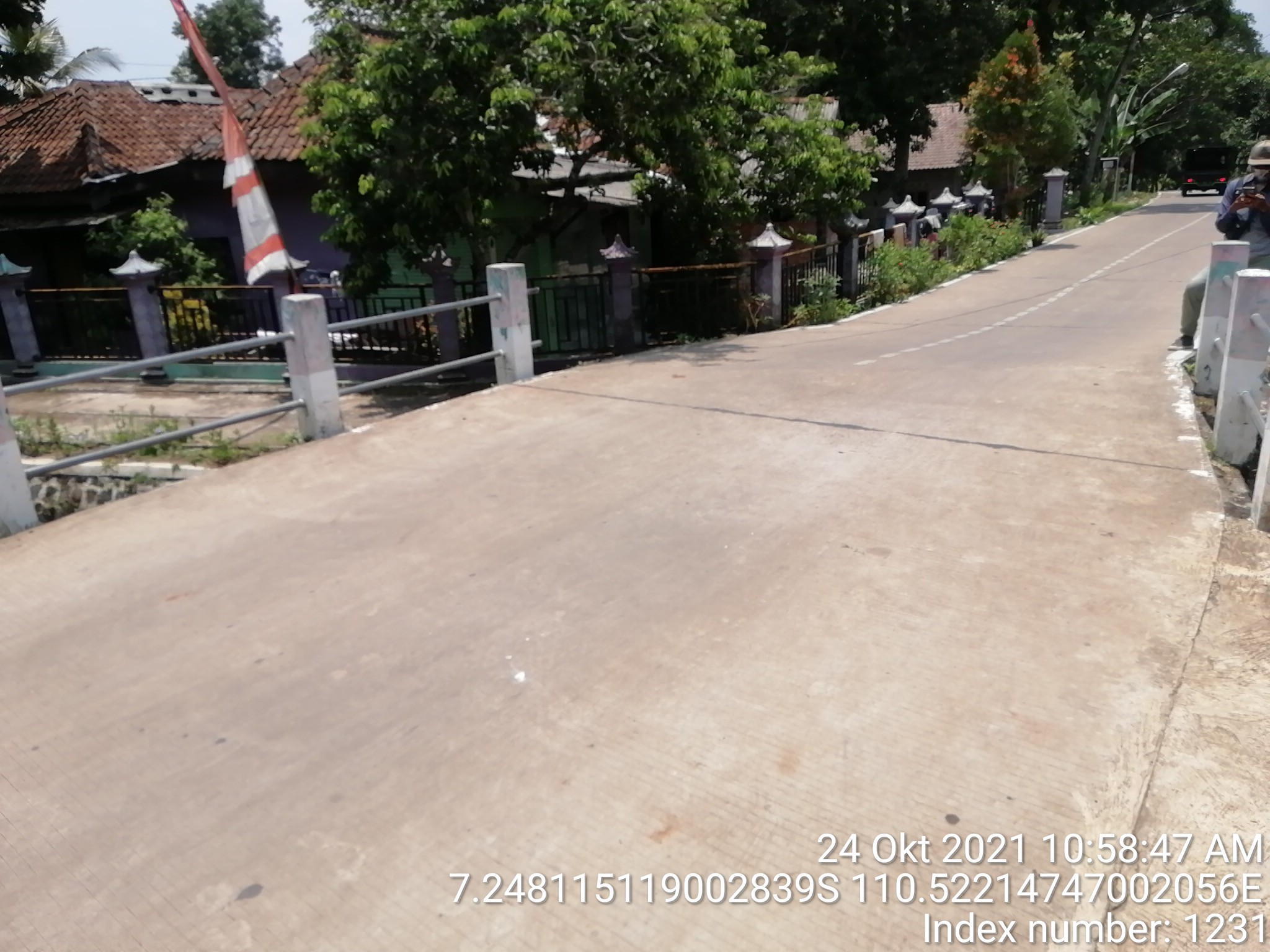

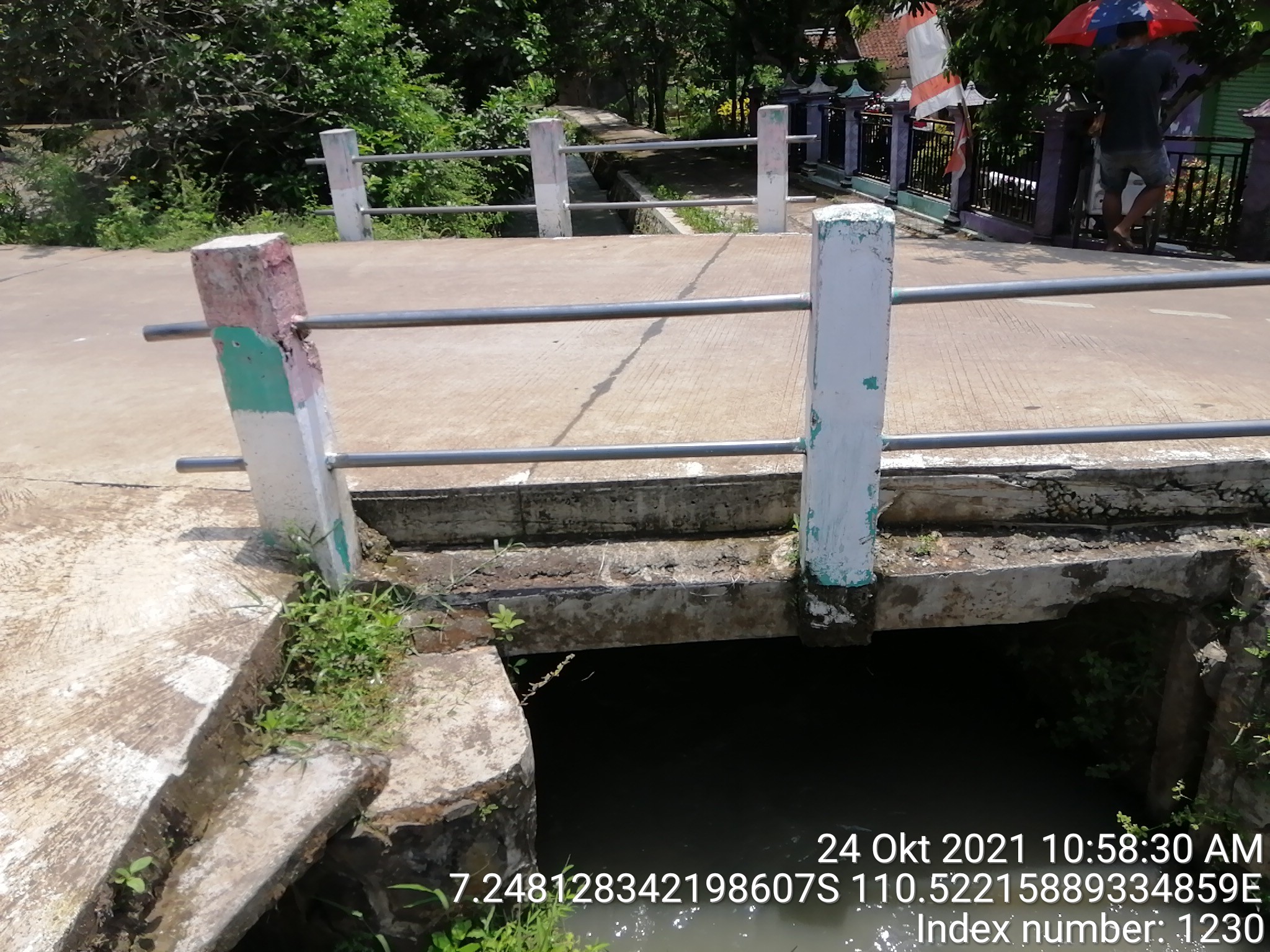

| DI Karanglo | Kec. Bringin | Ds. Bringin | Jembatan Desa | B.Kr.3i | -7.2481089999996 | 110.522079 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.Kr.3h | -7.2484819999996 | 110.521914 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Platlayan | B.Kr.1c | -7.2591909999996 | 110.516093 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.2b | -7.2532429999996 | 110.520878 |
|

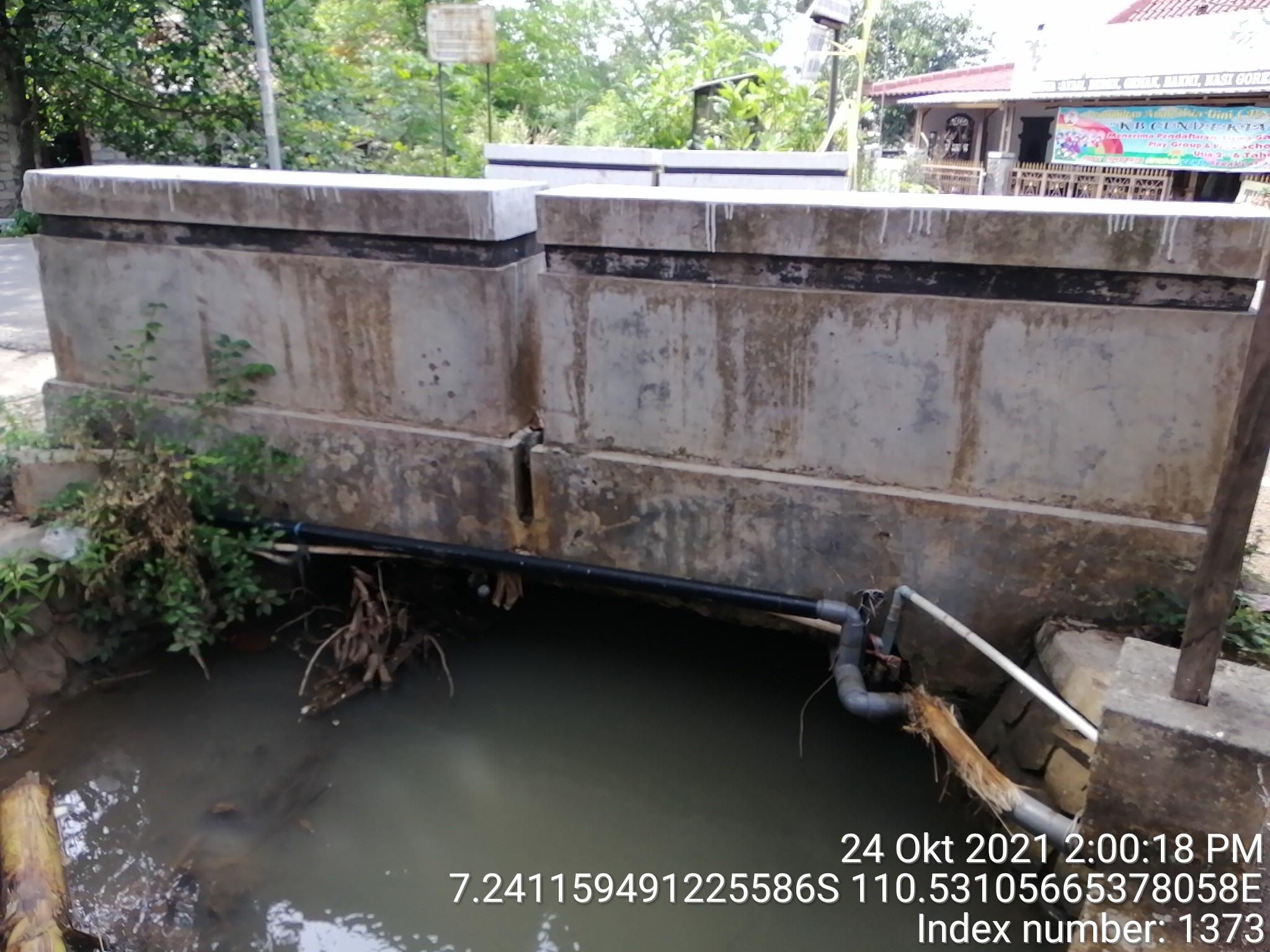

| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.5d | -7.2411129999996 | 110.531039 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | platlayan | B.Kr.1a | -7.2598869999996 | 110.51578 |
|

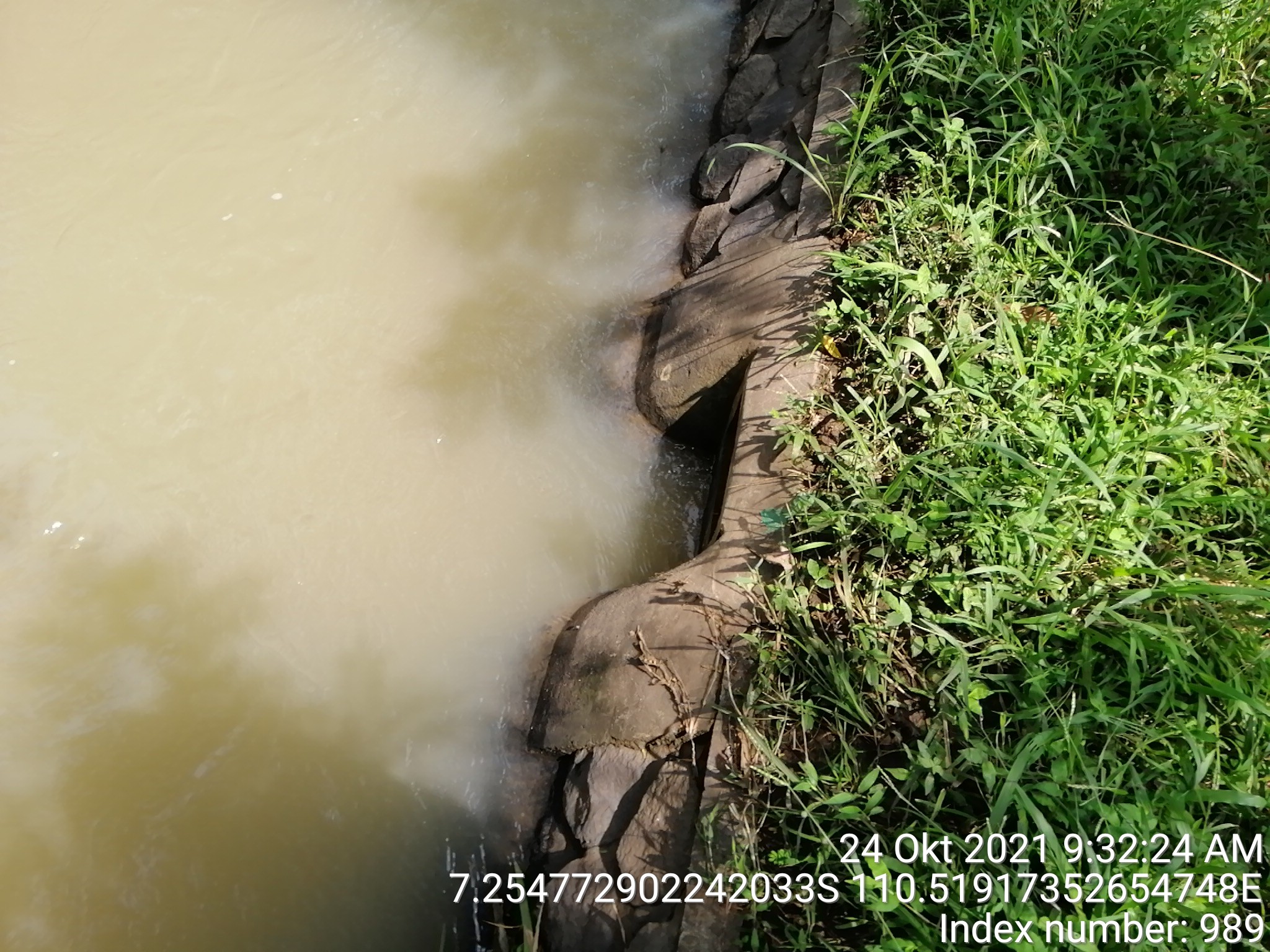

| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.1j | -7.2554139999996 | 110.51878 |
|

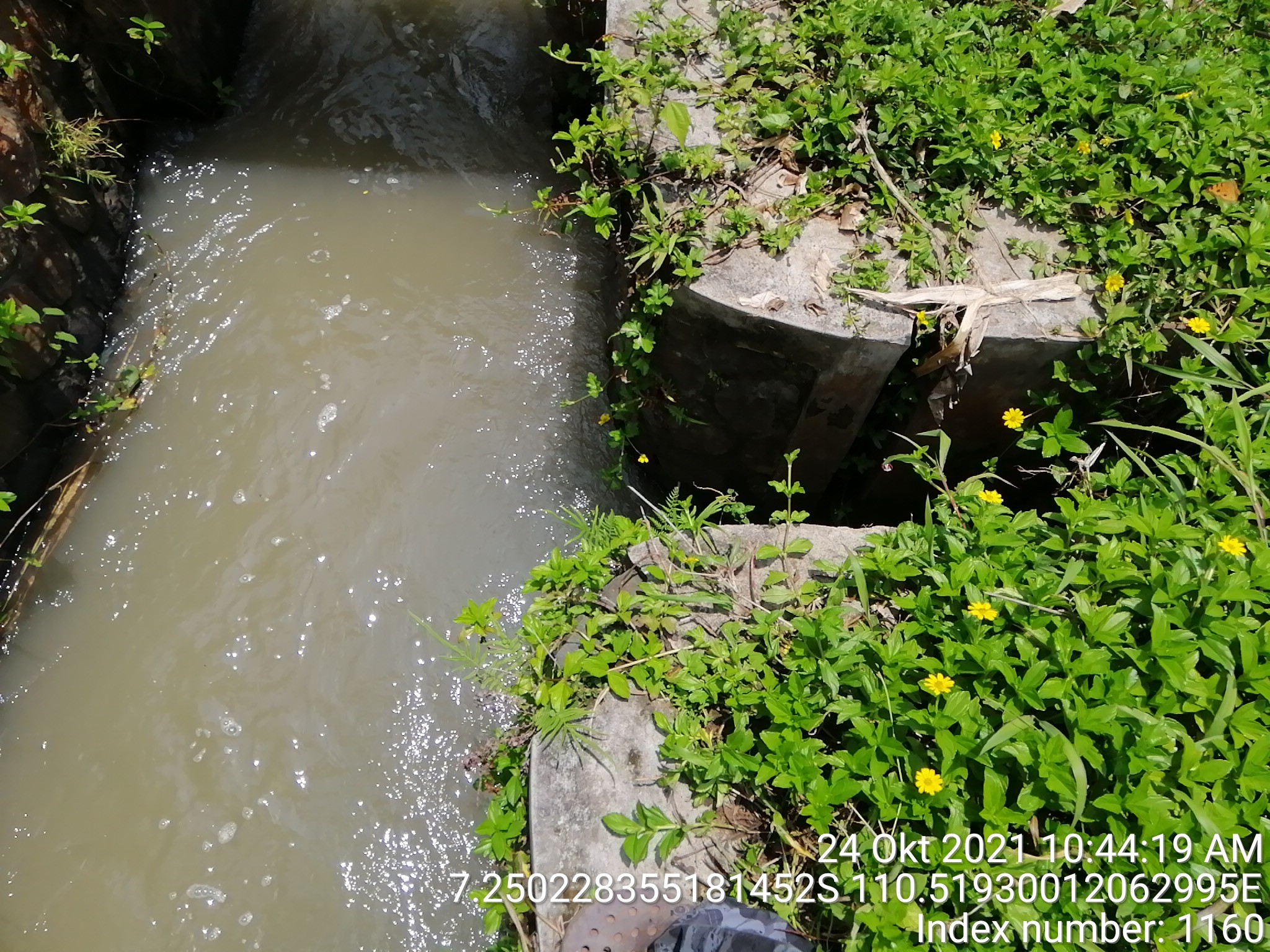

| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | Cr.Kr.3 | -7.2502899999996 | 110.519398 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.3d | -7.2501619999996 | 110.519897 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.S.Kr.1b | -7.2535439999996 | 110.521233 |
|

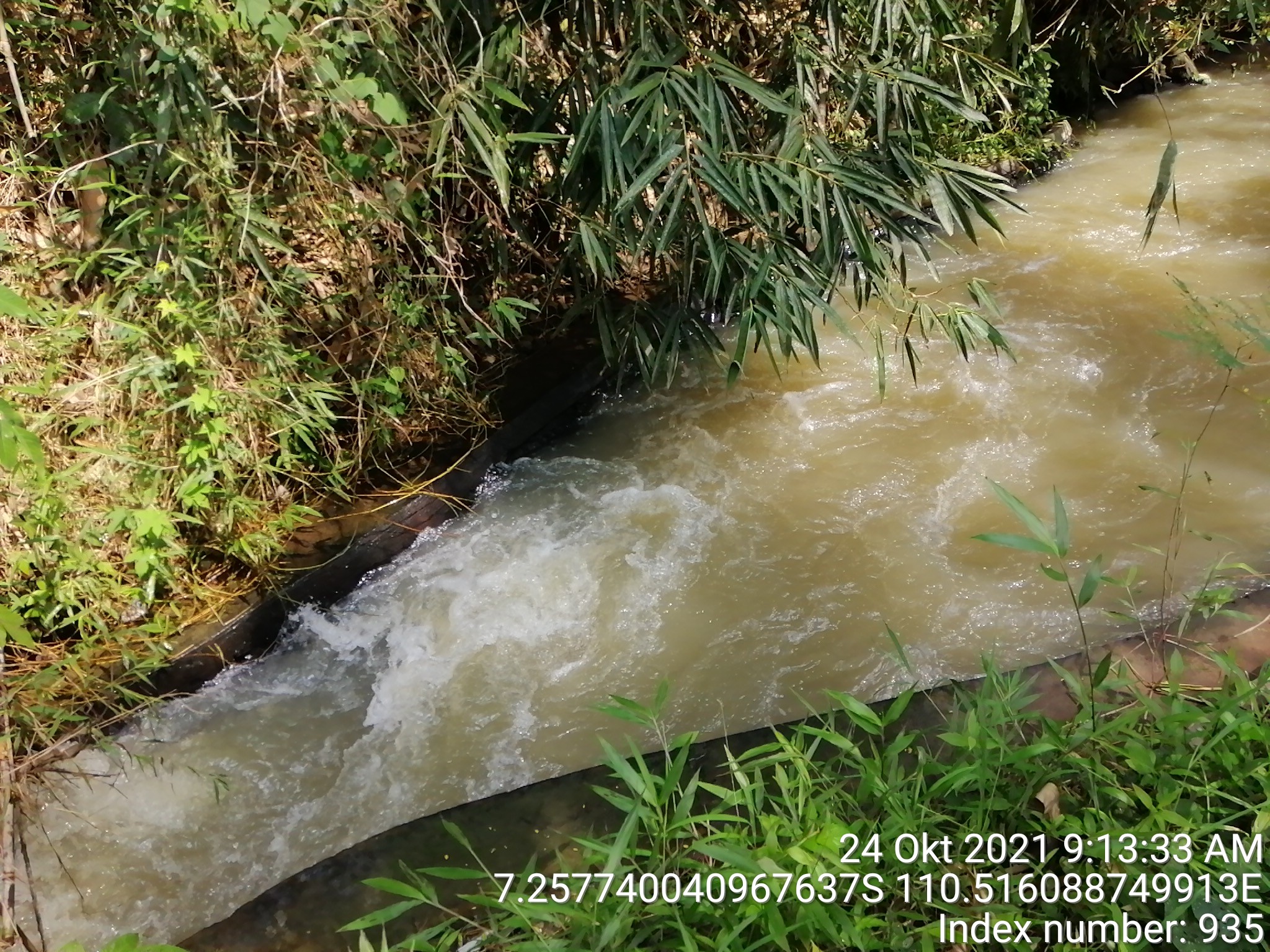

| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.1g | -7.2577049999996 | 110.515989 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.1h | -7.2570709999996 | 110.517105 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Got miring | B.Kr.5c | -7.2412579999996 | 110.529181 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Kiri | B.Kr.7 | -7.2344849999996 | 110.537472 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Ka | B.Kr.3 | -7.2447239999996 | 110.525825 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Kantong Lumpur | B.Kr.1a | -7.2599069999996 | 110.515753 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Kiri Kanan Tersier | B.S.Kr.1 | -7.2520529999996 | 110.532953 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Sadap Kiri | B.Kr.5 | -7.2386329999996 | 110.533959 |
|

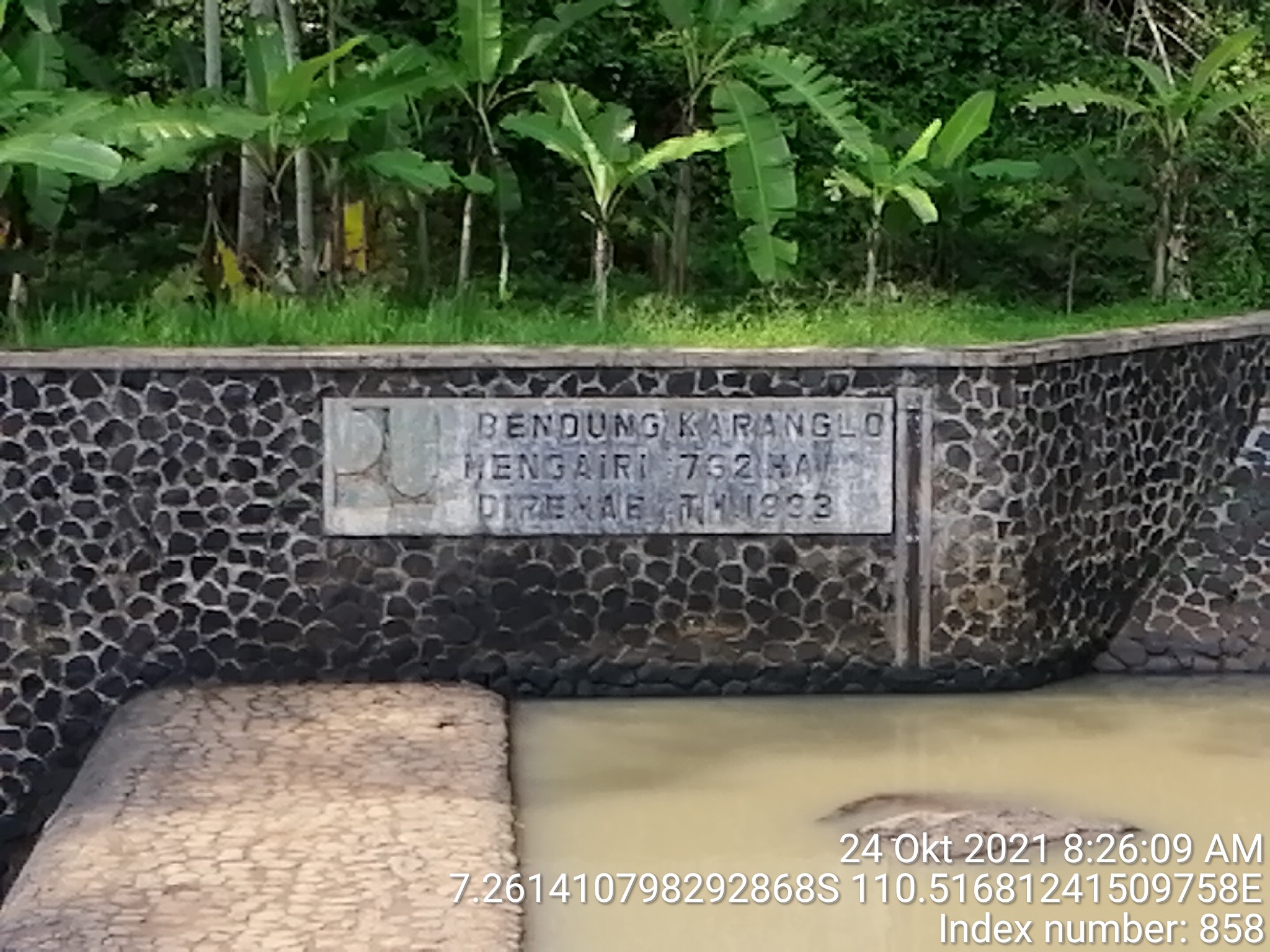

| DI Karanglo | Kec. Bringin | Ds. Bringin | Bd. Karanglo | B.Kr.0 | -7.2601249999996 | 110.515556 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.S.Kr.1a | -7.2538129999996 | 110.519843 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong | B.Kr.1b | -7.2597869999996 | 110.515888 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Terjunan | B.Kr.1i | -7.2566089999996 | 110.518591 |
|
| DI Karanglo | Kec. Bringin | Ds. Bringin | Gorong-gorong | B.Kr.8 | -7.2362729999996 | 110.53799 |
|
